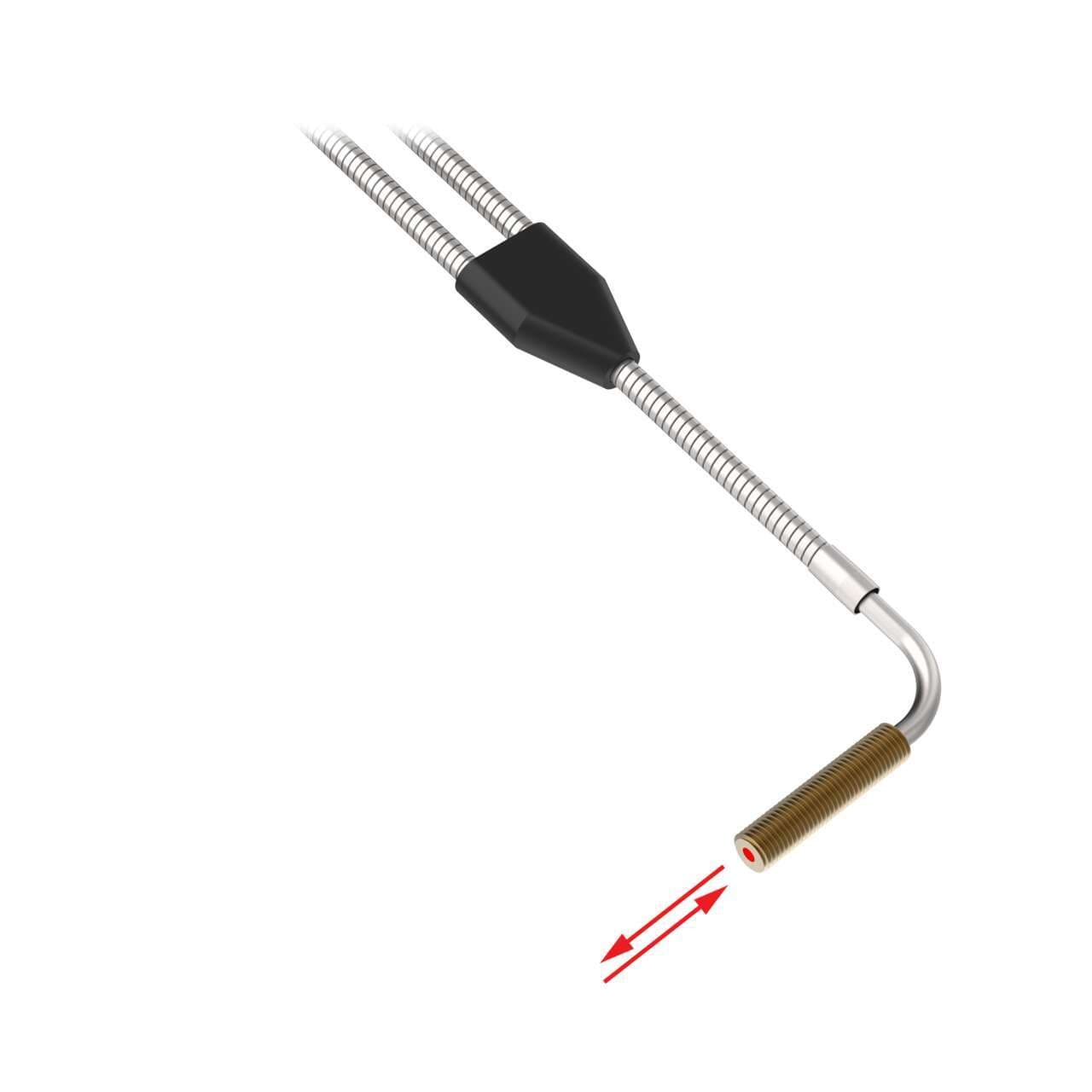

BAT23S Banner Fiber Optic Sensors

Product Details

• Weight
  132.902456 g
• Country Of Origin
  US
• Max Distance: DF-G3 (mm)
  No Data
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
• Measured Max Distance (mm)
  No Data
• Fiber Sensing End Size - Mounting Area
  #5/16-24 thread
• Tariff Fiber Meters (fbm)
  3110.34
• Termination Type
  Glass Fiber Sensors
• Application: Liquid Level
  No
• Application: Vacuum Feed Through
  None
• Feature: Small Object Detection
  No
• Feature: Extended Range
  No
• Integrated Lens
  No
• Feature: Chemical Resistant
  No
• Termination
  Terminated
• Minimum Bend Radius (mm)
  25
• Core Diameter (mm)
  3.2
• Sensing End Segment 1
  Angle
• Flex Relief
  No
Retractile
No
Sensing End Segment 2
Thread
Max Temp ( °C)
249
Fiber Length (m)
0.914
Fiber Sensing End Size
#5/16-24 thread
Sensing End Material (Specific)
Brass
Fiber Sensing End Tip
Thread
Fiber Sheathing Material (Jacket)
Stainless Steel Monocoil
Sensing Mode (General)
Diffuse
Beam Exit
Right Angle
Fiber Optic Type
Glass
Sensing Mode (Detailed)
Reflective
Quantity Included
1
Housing Style
Round
Main function
Fiber sensor
Design
diffuse mode Bifurcated fiber
Thread size
5/16"
Functions
Fiber optic sensor
Diameter
3.2mm fiber core
Primary brand
Banner Engineering
Shape
Cylindrical (threaded) end tip
Ambient air temperature for operation
+249 °C
Product series / family name
Fiber sensors
Sub-range name
Glass fiber series
Material
Brass sensing end Glass fiber stainless flexible tubing (fiber sheath)
Length
3ft / 910mm
Order code / Manufacturer SKU
17222
