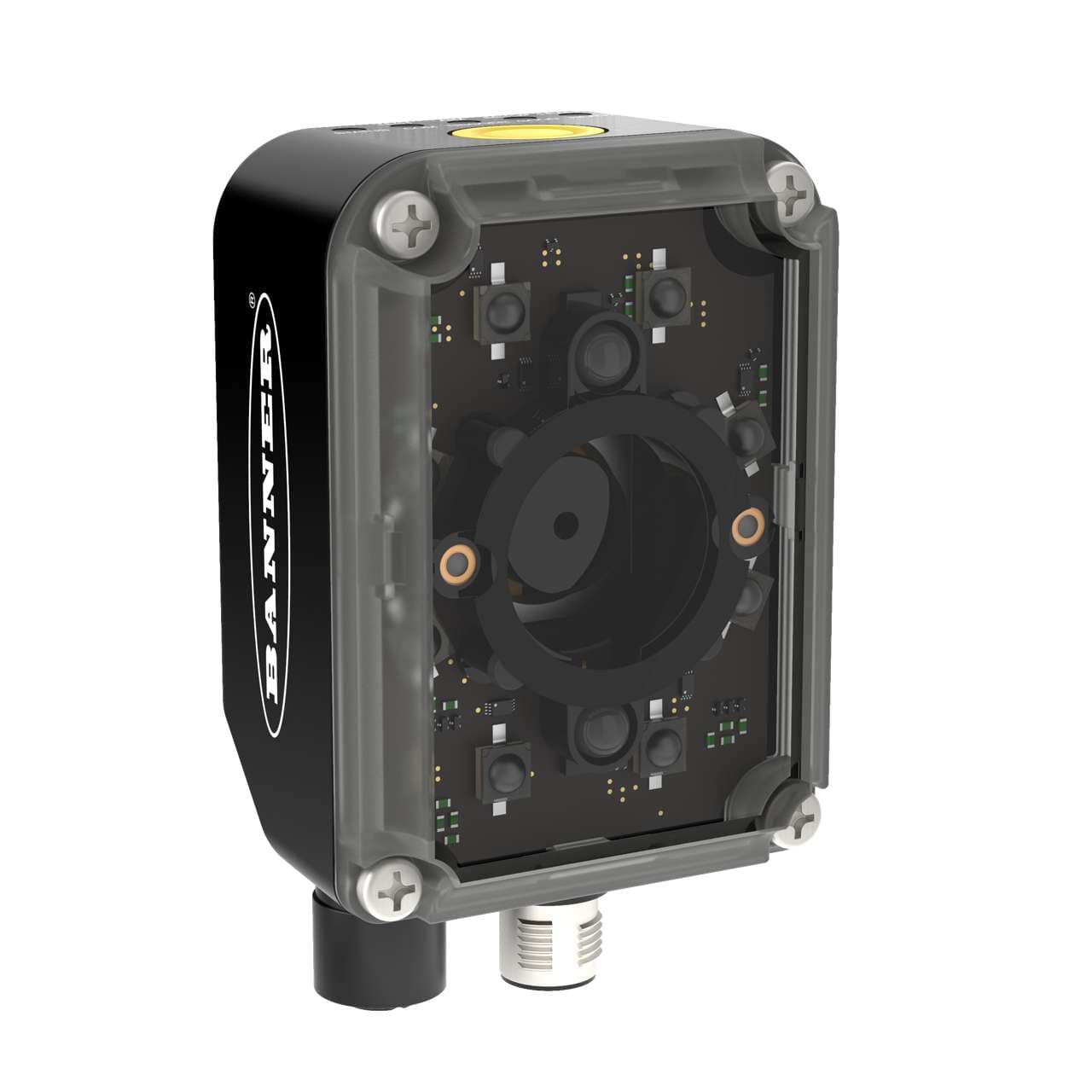

ABR71L9-RSE2 Banner Barcode Readers

Banner Engineering ABR71L9-RSE2 is a 1D / 2D fixed-mount barcode reader / scanner featuring a 1.3Mpixel resolution with a 9mm liquid autofocus optical lens and a red LED ring light illumination. It operates on a supply voltage range of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and is encased in an aluminium housing for durability. This scanner is designed for connectivity with a pre-equipped 17-pin Euro-style M12 male connector for power supply and a 4-pin Euro-style M12 female connector (D-Coded) for Ethernet connections. It offers a high degree of protection with an IP67 rating, making it suitable for challenging environments. The ABR71L9-RSE2 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, RS-232, and RS-422, ensuring compatibility with various industrial networks. It has dimensions of 43 mm in height, 95 mm in depth, and 54 mm in width. The device can operate in ambient air temperatures ranging from 0 to +50 °C. It features 1 x digital input (4.5-30Vdc Sink/Source / trigger input), 1 x digital input (4.5-30Vdc Sink/Source / opto-couple isolated input), and 3 x digital outputs (PNP/NPN transistor), with a refresh rate of 60fps and light color of visible red.
