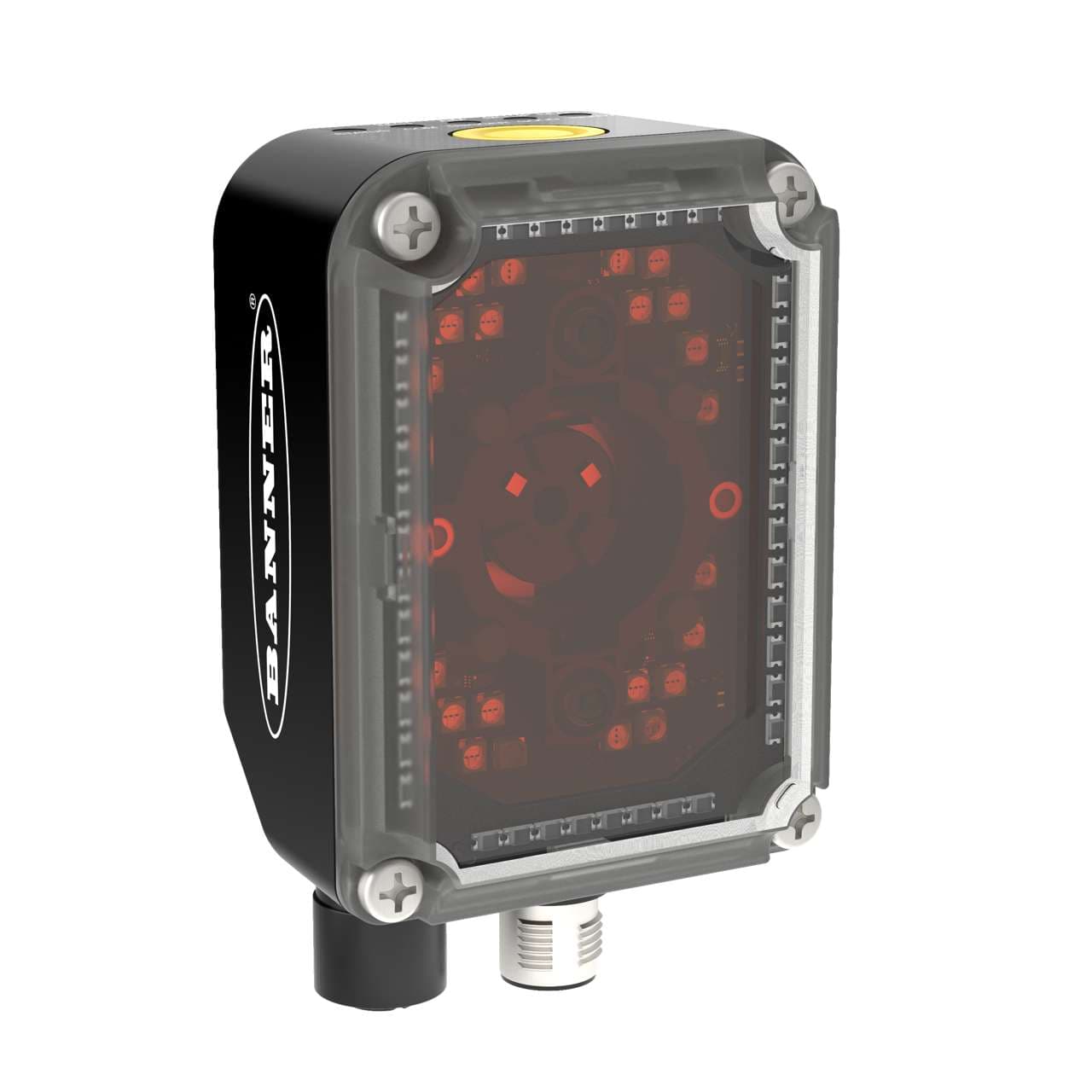

ABR7109-MSE2 Banner Barcode Readers

Banner Engineering ABR7109-MSE2 is a 1D / 2D fixed-mount barcode reader/scanner featuring a 1.3Mpixel resolution. It is designed with a 9mm optical lens and equipped with a blue/red LED ring light for illumination. The scanner operates on a supply voltage range of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and is housed in an aluminium casing for durability. It offers a variety of connection options, including a pre-equipped 17-pin Euro-style M12 male connector for power supply and a 4-pin Euro-style M12 female connector (D-Coded) for Ethernet connectivity. The ABR7109-MSE2 is IP67 rated, indicating a high degree of protection against dust and water ingress. It supports multiple communication protocols, including Ethernet/IP, Modbus TCP, RS-232, and RS-422. The device measures 43 mm in height, 95 mm in depth, and 54 mm in width. It is designed to operate in ambient air temperatures ranging from 0 to +50°C. For inputs and outputs, it features 1 x digital input (4.5-30Vdc Sink/Source / trigger input), 1 x digital input (4.5-30Vdc Sink/Source / opto-couple isolated input), and 3 x digital outputs (PNP/NPN transistor). The scanner's light color includes visible blue and red, and it operates with a refresh rate of 60fps.
