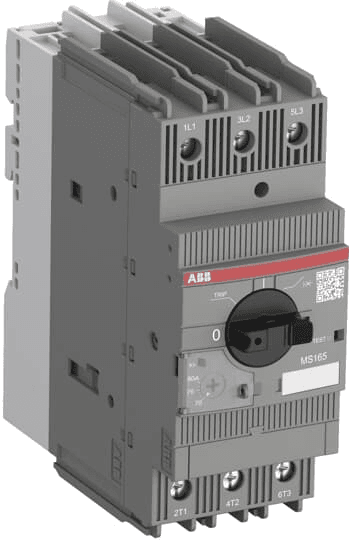

1SAM340000R1002 ABB Control Manual Motor Protectors

1SAM340000R1002 on Powermatic Associates
ABB Control

Part#:1SAM340000R1002

Manufacturer:ABB Control

Category:Manual Motor Protectors

Product Lifecycle:Active

Product description

ABB 1SAM340000R1002 is a protection unit designed with thermal-magnetic circuit breaker functionality for transformer primary protection. It features screw-clamp connections and offers an adjustable rated current ranging from 0.16A to 0.25A. The unit operates within an ambient air temperature range for operation of -25 to +70°C and for storage from -50 to +80°C. With an IP20 control voltage (DC), the device has a rated impulse voltage (Uimp) of 6 kV and is equipped with three poles (3P) for short circuit protection, phase failure/loss, and transformer protection. The rated insulation voltage (Ui) stands at 690 V. This protection unit is designed for mounting on DIN rails or mounting plates, supporting an operating mode of 100,000 operations with an ON/OFF/TRIP rotary knob for flow control. Its dimensions include a net width of 45 mm, a net depth of 86.75 mm, and it is capable of thermal protection for overloads adjustable between 0.16A and 0.25A.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

ABB 1SAM340000R1002 is a protection unit designed with thermal-magnetic circuit breaker functionality for transformer primary protection. It features screw-clamp connections and offers an adjustable rated current ranging from 0.16A to 0.25A. The unit operates within an ambient air temperature range for operation of -25 to +70°C and for storage from -50 to +80°C. With an IP20 control voltage (DC), the device has a rated impulse voltage (Uimp) of 6 kV and is equipped with three poles (3P) for short circuit protection, phase failure/loss, and transformer protection. The rated insulation voltage (Ui) stands at 690 V. This protection unit is designed for mounting on DIN rails or mounting plates, supporting an operating mode of 100,000 operations with an ON/OFF/TRIP rotary knob for flow control. Its dimensions include a net width of 45 mm, a net depth of 86.75 mm, and it is capable of thermal protection for overloads adjustable between 0.16A and 0.25A.

Similar products from: ABB Control Manual Motor Protectors

Manufacturer warranty

1SAM340000R1002 ABB Control

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

ABB Control

ABB's Industrial Automation division offers a variety of solutions designed for process and hybrid industries, including industry-specific integrated automation, electrification, and digital solutions, control technologies, software, and advanced services.

Relevant products

1SAM340000R1013 on Advantage Electric Supply

1SAM340000R1013

Verified stock: 0

ABB 1SAM340000R1013 is a protection unit designed with thermal-magnetic circuit breaker functionality for transformer primary protection. It features screw-clamp connections and offers an adjustable rated current of 16A to 20A. This unit is designed to operate within an ambient air temperature range of -25 to +70°C for operation and -50 to +80°C for storage. It supports a control voltage (DC) of IP20 and has a rated impulse voltage (Uimp) of 6 kV. The device measures 97.8 mm in net width, with poles extending 45 mm, and incorporates 3-poles (3P) for protection functions including short circuit protection, phase failure or loss, and transformer protection. The net depth is 690 V, and the control voltage (AC) stands at 86.55 mm. It is capable of mounting on DIN rails or mounting plates, with a primary current of 690 V and an operating mode designed for 50,000 operations. The unit features an ON/OFF/TRIP rotary knob for flow control, supports up to 100,000 operations in length, and offers thermal protection for overloads adjustable between 16A and 20A.

ABB Control

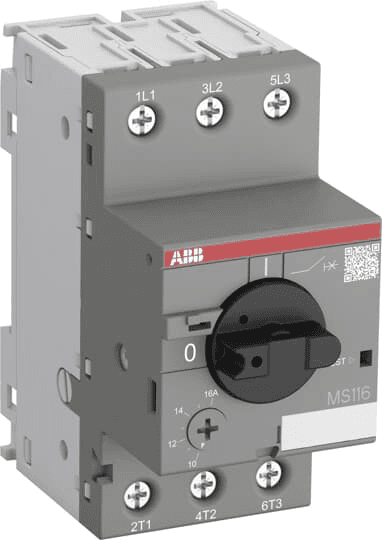

1SAM350005R1013 on Advantage Electric Supply
