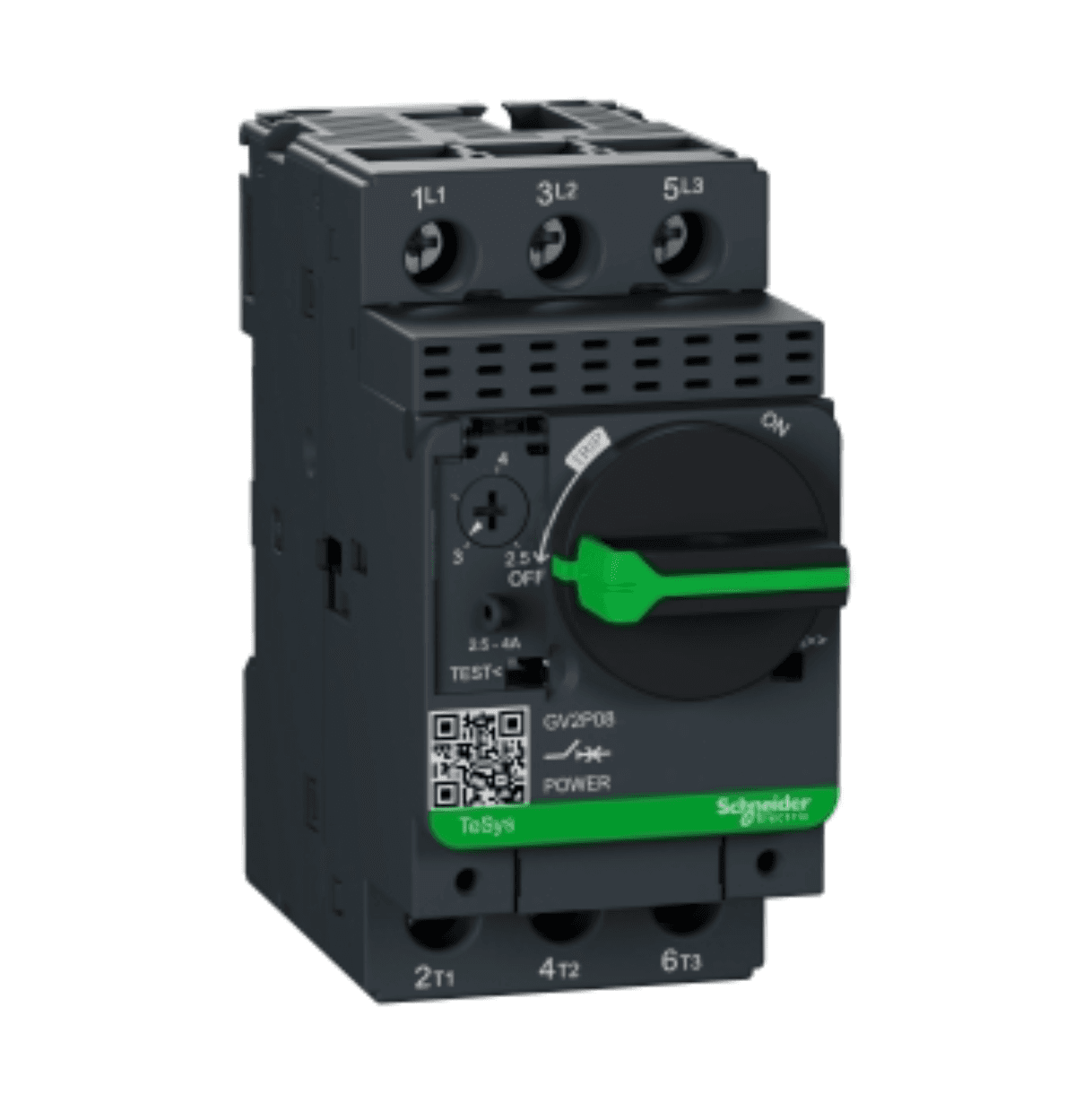

Schneider Electric GV2P08 is a Motor Protection Circuit Breaker (MPCB) within the GV2P sub-range, designed for thermal-magnetic motor protection and manual motor starting. It features 3 poles and provides protection functions against short-circuit and thermal overload with a rated current of 2.5 - 4 A. The device has a rated insulation voltage (Ui) of 690 V and is suitable for DIN rail mounting. It operates via a rotary knob, with protection settings for short-circuit pickup current fixed at 51A. The GV2P08 has a rated impulse voltage (Uimp) of 6 kV and supports rated active powers of 1.1 kW at 400/415Vac, 1.5 kW at 500Vac, and 2.2 kW at 690Vac. Its trip current rating is 4 AT, with a frame current rating of 32 AF. This MPCB boasts mechanical durability of 100,000 operations at no load and electrical durability of 100,000 operations at 415Vac; AC-3 with load. It features screw-clamp terminals, a rated voltage (AC) phase-to-phase of 690 V, and all three poles are protected. The minimum current is 2.5 A, and the maximum current is 4 A, with a trip unit type of thermal-magnetic and a utilisation category of A AC-3.

Schneider Electric GV7RS20 is a Motor Protection Circuit Breaker (MPCB) within the GV7RE sub-range, designed for thermal-magnetic motor protection and manual motor starting. It features 3 poles and provides protection functions against short-circuit and thermal overload. The rated current ranges from 12 to 20 A, with a rated insulation voltage (Ui) of 750 V. This MPCB is designed for DIN rail or mounting plate installation, has a net width of 105 mm, and operates via a toggle mechanism. Protection settings for short-circuit pickup current are fixed at 20A, with a rated impulse voltage (Uimp) of 8 kV. The rated active power varies with voltage: 9 kW and 7.5 kW at 400/415Vac, 11 kW and 9 kW at 500Vac, and 15 kW and 11 kW at 690Vac. It has a trip current rating of 20 AT, a frame current rating of 100 AF, and offers mechanical durability of 50,000 operations at no load and electrical durability of 30,000 operations at 440Vac in AC-3 category. The MPCB uses screw-clamp terminals, supports a phase-to-phase rated voltage of 690 V, and is designed for AC-3 utilisation category. The protected poles number 3, with a minimum current of 12 A, a maximum current of 20 A, and a trip unit type of thermal-magnetic.

Schneider Electric GVAU107 is a coil with the main function of tripping, specifically designed as part of the GV2 sub-range. It functions as an undervoltage trip coil (MN) with a rated insulation voltage (Ui) of 690 V and a control voltage (AC) of 100 Vac at 50Hz. This part is engineered for mechanical durability, capable of 30,000 operations when used with GV2ME/GV2P and 10,000 operations with GV3P/GV3L. It features screw-clamp type terminals for secure connections.

Schneider Electric GV2GA01 is a connector within the GV2 sub-range designed specifically for PCB connections. It features a 3-pole configuration, catering to applications that require a set of connections for printed circuit boards.

Schneider Electric GVAU125 is a coil designed for tripping purposes within the GV2 sub-range. It functions as an undervoltage trip coil (MN) with a rated insulation voltage (Ui) of 690 V. The control voltage for AC at 50Hz is specified at 120-127 Vac. Its mechanical durability is rated at 30,000 operations when used with GV2ME/GV2P and 10,000 operations with GV3P/GV3L. This part is equipped with screw-clamp type terminals.

Schneider Electric GV7RS25 is a Motor Protection Circuit Breaker (MPCB) within the GV7RE sub-range, designed for thermal-magnetic motor protection and manual motor starting. It features 3 poles and provides protection functions against short-circuit and thermal overload. The rated current ranges from 15 to 25 A, with a rated insulation voltage (Ui) of 750 V. This MPCB is designed for DIN rail or mounting plate installation, has a net width of 105 mm, and operates via a toggle mechanism. Protection settings for short-circuit pickup current are fixed at 25A. The rated impulse voltage (Uimp) is 8 kV, and it supports rated active power (kW) of 11 kW and 9 kW at 400/415Vac, 15 kW and 11 kW at 500Vac, and 18.5 kW and 15 kW at 690Vac. The trip current rating is 25 AT, with a frame current rating of 100 AF. It boasts mechanical durability of 50,000 operations at no load and electrical durability of 30,000 operations at 440Vac; AC-3. The GV7RS25 uses screw-clamp terminals, has a rated voltage (AC) phase-to-phase of 690 V, and protects all 3 poles. The minimum and maximum currents are 15 A and 25 A, respectively, with a trip unit type of thermal-magnetic and a utilization category of AC-3.

Schneider Electric GVAU026 is a coil designed for tripping purposes within the GV2 sub-range. It functions as an undervoltage trip coil (MN) with a rated insulation voltage (Ui) of 690 V. The control voltage for AC at 60Hz is 24 Vac. This part is engineered for mechanical durability, capable of 30,000 operations when used with GV2ME/GV2P and 10,000 operations with GV3P/GV3L. It features screw-clamp type terminals for secure connections.

Schneider Electric GVAPH02 is a mounting accessory designed specifically for use within the GV2 sub-range. It functions as a mounting bracket, facilitating the secure installation of compatible devices.

Schneider Electric GV7AC07 is an adapter designed as part of the GV7 sub-range, specifically serving as a kit for combination with contactors. It is compatible with LC1F225 to LC1F265 models, facilitating their integration and operation within automation systems.

Square D by Schneider Electric LRL36400M37X is a Motor Protection Circuit Breaker (MPCB) within the PowerPacT LRL sub-range, designed for electronic motor protection, manual motor starting, and motor circuit protection. This PowerPacT L-Frame 600 Micrologic 1.3M (LI) model features a 3-pole (3P) design with a rated current of 400A and a rated insulation voltage (Ui) of 750 V. It operates at a rated voltage (AC) of 600Vac 600Y/347Vac, with a mounting mode that allows for individual unit mount on a plate. The connection type includes lugs on both load and line sides, ensuring a secure connection. It offers protection functions including instantaneous protection (I), with protection settings fixed at 4800A for short-circuit incidents. The device has a rated operating voltage (Ue) of 690 V and a rated impulse voltage (Uimp) of 8 kV. Its net dimensions are 382 mm in height, 153 mm in width, and 171 mm in depth, with a degree of protection rated at IP40. The operating mode is manual toggle, and it features a trip current rating of 400 AT, a frame current rating of 600 AF, and a short circuit breaking rating that varies based on voltage levels, reaching up to 200kA for certain voltages under UL489 standards. The trip unit type is an electronic Micrologic 1.3M (I) with no display, categorized under utilisation category A.
