Square D by Schneider Electric HOMC12UC is a spare part designed specifically as a load center cover replacement. It is compatible with units that accommodate 12 spaces, aligning with the precise dimensions required for a seamless fit and function.

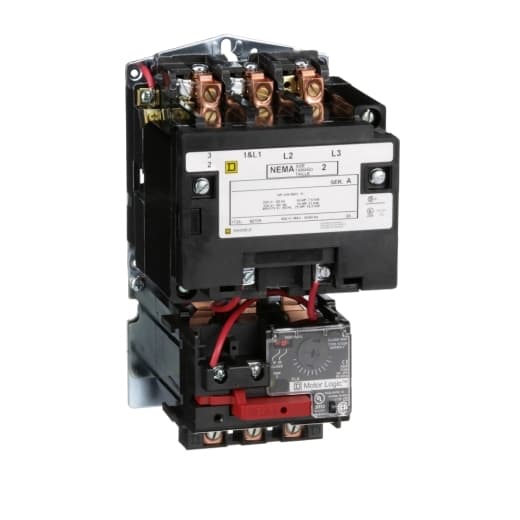

NEMA Motor Starter, Type S, nonreversing, Size 2, 45A, 25 HP at 460 VAC, 5 kA SCCR, 2 phase, 4 pole, melting alloy, 24 VAC coil, open

NEMA Motor Starter, Type S, nonreversing, Size 2, 45A, 25 HP at 460 VAC, 5 kA SCCR, 2 phase, 4 pole, melting alloy, 240 VAC coil, open

Schneider Electric 9001KP58LRR31 is a pilot light designed for various industrial applications. It features an LED for its rated active power and is encased in a plastic lens cap with a chromium-plated metal bezel for durability. This pilot light is compatible with a wide range of enclosures, boasting protection ratings of IP66, NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, and NEMA 13, making it suitable for diverse environmental conditions. It operates at network frequency 9001K and supports both AC and DC circuits at 120 V. The primary voltage requirement for this unit is 30 mm, and it utilizes a Fresnel lens for efficient light distribution. The lens is round, with a diameter of 1.18 inches, and it employs a screw-clamp trip unit type for secure installation.

Schneider Electric ILA1B571PC2A0 is a DC servo motor within the Servo motors sub-range, featuring an integrated servo drive and DC motor. It is designed with a multi-turn encoder (16384ppr x 4096 turns), a smooth shaft, and a single (1) motor stack, optimized for medium rotation speed and medium torque. The connection is facilitated through an industrial connector, and it supports the PROFIBUS DP communication protocol. For safety, it includes the Safe Torque OFF (STO) protection function. This servo motor operates on a supply voltage of 24Vdc-36Vdc, mounts via a 57x57mm flange, and has dimensions of 92.2 mm in height, 57.2 mm in width, and 189.3 mm in depth. It delivers a nominal torque of 0.26Nm, with a maximum torque of 0.6Nm, and a moment of inertia of 0.1kg.cm^2. The rotational speed ranges from 3200rpm at 24Vdc to 5500rpm at 36Vdc, with a stall torque of 0.6Nm.

Square D by Schneider Electric QOU2605283 is a unit-mount Miniature Circuit Breaker (MCB) designed for securing electrical circuits. It features a 2-pole configuration and supports a rated current of 60A. This MCB is compatible with ring tongue connections on both the load and line sides, facilitating straightforward installation. It operates effectively at a rated voltage of 120V or 240V AC and 48V DC. The QOU2605283 offers a short circuit breaking rating of 10kA at 240V AC and 5kA at 48V DC, ensuring protection against overcurrents. The terminals are designed to accommodate ring tongue connectors, enhancing the ease of wiring and connection.

PENDANT STATION 600VAC 10AMP XAC SPECIAL

CONTROL STATION ENCLOSURE XAP +OPTIONS

Schneider Electric XAPM14 is a die-cast empty control station from the XAP sub-range, designed without an opening. It is constructed from zinc alloy with a square shape. This control station offers a high degree of protection with ratings of IP69, IP65, and IP69K, suitable for flush mounting. The dimensions include a net height of 80 mm, a net depth of 77.3 mm, and a net width of 80 mm. It is capable of withstanding ambient air temperatures for storage ranging from -40 to +70 °C, with operational temperature limits also set between -40 °C and 70 °C.
