DC/DC Converters - Puls
DC-DC Converters convert a direct current voltage input into a different direct current voltage output
All categories
DC/DC Converters
DC-DC Converters convert a direct current voltage input into a different direct current voltage output
DC/DC Converter, 200W, DC 110V input, 24-28Vdc output, 8.3A, railway applications
Quick Quote
PULS SLD2.100 is a power supply unit featuring galvanic isolation and a DC-OK relay contact output. It serves as both an AC/DC power supply unit (PSU) and a DC/DC converter, equipped with screw-clamp connections for secure installation. The dimensions of this unit are W49mm x H124mm x D102mm, designed for DIN rail mounting, making it suitable for compact spaces. It operates with a supply voltage range of 18Vdc-36Vdc (24Vdc nominal) and delivers a rated current of 8A at 4.5Vdc with a power derating from +60°C to +70°C. The ambient air temperature for operation spans from 0 to +70 °C. The SLD2.100 consumes 2.9A at full 18Vdc output and 1.5A at full 36Vdc output, supporting both series and parallel operation. The output voltage is adjustable between 4.5-5.5Vdc, with an efficiency of 0.82 at 24Vdc input. This unit offers a rated power of 40W, a hold time of 10ms at 24Vdc input, and experiences power dissipation/losses of 8.5W at 24Vdc input with a full output load. Additionally, it features a 300ms start-up delay and maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.
Quick Quote
DC/DC Converter, 400W, DC 110V input, 3 phase, 24.5Vdc output, 16.3A, railway applications
Quick Quote
DC/DC Converter, 100W, DC 110V input, 24-28Vdc output, 4.2A, railway applications
Quick Quote
PULS CPS20.481-D1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C. The unit has a net width of 65 mm and dimensions of W65mm x H124mm x D127mm. It consumes 1.69A at 300Vdc input for full 48Vdc output and 4.68A at 110Vdc input for full 48Vdc output, with a peak inrush current of 10A at 300Vdc input and 13A at 110Vdc input. The CPS20.481-D1 offers an efficiency of 0.946 at 300Vdc input and 0.931 at 100Vdc input. It has an IP20 degree of protection and features output overvoltage protection, overload/short-circuit protection, and is capable of series/parallel operation for increased output power. The unit's power dissipation/losses are 27.4 W, and it has an output stage capacitance of 2450 µF. Its electrical durability ranges from 58,000 to 506,000 hours under various conditions. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This power supply unit supports a supply voltage range of 88Vdc-360Vdc and an AC supply voltage with 85Vac turn-ON voltage. It provides a rated current of 10A at 48Vdc and a rated power of 576W with PowerBoost at ambient temperatures less than 45°C, and 480W at less than 60°C. The output voltage is adjustable between 48Vdc-56Vdc, with a 200mV turn-ON overshoot, and it offers a hold time of 26ms at 110/300Vdc input. Connection is facilitated through screw-clamp connections.
Quick Quote

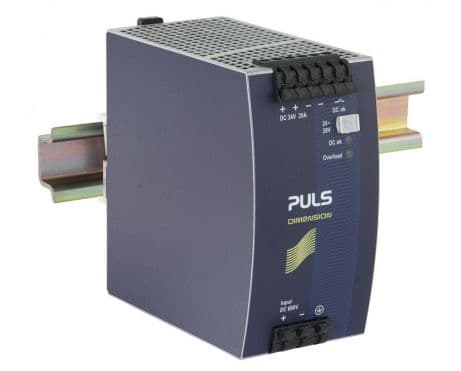

PULS QTD20.241 is a power supply unit (PSU) and DC/DC-Converter with a 25% power reserve, designed for DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and features an intermediate DC-bus and galvanic isolation. The unit provides a rated current of 20A at 24Vdc, 17.5A at 28Vdc, and includes a 12W derating from +60°C to +70°C. Connection is facilitated through spring-clamp connections. As part of the Q-series, it measures W65mm x H124mm x D127mm and requires a supply voltage of 384Vdc to 672Vdc, with specific nominal voltages of 500Vdc, 575Vdc, and 600Vdc. The turn-ON voltage is 450Vdc, and the shutdown voltage is 325Vdc. The housing is made of aluminium, and it is designed for DC networks with a net width of 65 mm. The rated power is 480W at both 24Vdc and 28Vdc, with an adjustable output voltage of 24Vdc to 28Vdc and a 500mV turn-ON overshoot. Protection functions include output overvoltage protection, overload/short-circuit current protection, and resistance to back-feeding loads up to 34V. The unit boasts an efficiency of 0.95 at 600Vdc input, a peak current consumption of 3A, a 35s start-up delay, and rise times of 70ms and 110ms under specified conditions. The hold time is 22ms at 600Vdc input, with power dissipation/losses of 25.5W at full output load. Electrical durability is rated at various hours depending on the operating conditions, with a ripple of 100mVpp and an output stage capacitance of 950µF.
Quick Quote
PULS CP10.241-60 is a power supply unit designed for DIN rail mounting with an aluminium housing. It operates within an ambient air temperature range of -40 to +70°C and has a net width of 39 mm. The unit features a current consumption of 8A peak max. inrush at both 110Vdc and 96Vdc input. It boasts an efficiency of 0.945 at 110Vdc input and 0.943 at 960Vdc input, with dimensions of W39mm x H124mm x D117mm. The CP10.241-60 has a time delay of 600-700ms for start-up and a rise time of 45ms to 90ms depending on the load capacitance. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 11.6 W and 12.1 W for 110Vdc and 96Vdc inputs, respectively, at full output load. The output stage capacitance is 4400 µF. Electrical durability ranges from 112000 to 549000 hours depending on the operating conditions. The ripple is 50mVpp across a 20Hz to 20MHz range. This PSU/DC-DC Converter from the CP-series is designed for railway applications and features a DC-OK relay contact output, spring-clamp connections, and a supply voltage range of 67Vdc-154Vdc. It provides a rated current of 8.3A at 24Vdc, operates on a DC network, and offers a rated power of 200W. The output voltage is adjustable from 24Vdc to 28Vdc with a 200mV turn-ON overshoot, and it has a hold time of 34ms.
Quick Quote
| Item | Manufacturer | Price | Stock | Delivery | |
|---|---|---|---|---|---|
| QS10.241-60 DC/DC Converter, 200W, DC 110V input, 24-28Vdc output, 8.3A, railway applications | Puls | Quick Quote | ||
| SLD2.100 PULS SLD2.100 is a power supply unit featuring galvanic isolation and a DC-OK relay contact output. It serves as both an AC/DC power supply unit (PSU) and a DC/DC converter, equipped with screw-clamp connections for secure installation. The dimensions of this unit are W49mm x H124mm x D102mm, designed for DIN rail mounting, making it suitable for compact spaces. It operates with a supply voltage range of 18Vdc-36Vdc (24Vdc nominal) and delivers a rated current of 8A at 4.5Vdc with a power derating from +60°C to +70°C. The ambient air temperature for operation spans from 0 to +70 °C. The SLD2.100 consumes 2.9A at full 18Vdc output and 1.5A at full 36Vdc output, supporting both series and parallel operation. The output voltage is adjustable between 4.5-5.5Vdc, with an efficiency of 0.82 at 24Vdc input. This unit offers a rated power of 40W, a hold time of 10ms at 24Vdc input, and experiences power dissipation/losses of 8.5W at 24Vdc input with a full output load. Additionally, it features a 300ms start-up delay and maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω. | Puls | Quick Quote | ||
| CPS20.241-60 DC/DC Converter, 400W, DC 110V input, 3 phase, 24.5Vdc output, 16.3A, railway applications | Puls | Quick Quote | ||
| QS5.241-60 DC/DC Converter, 100W, DC 110V input, 24-28Vdc output, 4.2A, railway applications | Puls | Quick Quote | ||
| CPS20.481-D1 PULS CPS20.481-D1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C. The unit has a net width of 65 mm and dimensions of W65mm x H124mm x D127mm. It consumes 1.69A at 300Vdc input for full 48Vdc output and 4.68A at 110Vdc input for full 48Vdc output, with a peak inrush current of 10A at 300Vdc input and 13A at 110Vdc input. The CPS20.481-D1 offers an efficiency of 0.946 at 300Vdc input and 0.931 at 100Vdc input. It has an IP20 degree of protection and features output overvoltage protection, overload/short-circuit protection, and is capable of series/parallel operation for increased output power. The unit's power dissipation/losses are 27.4 W, and it has an output stage capacitance of 2450 µF. Its electrical durability ranges from 58,000 to 506,000 hours under various conditions. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This power supply unit supports a supply voltage range of 88Vdc-360Vdc and an AC supply voltage with 85Vac turn-ON voltage. It provides a rated current of 10A at 48Vdc and a rated power of 576W with PowerBoost at ambient temperatures less than 45°C, and 480W at less than 60°C. The output voltage is adjustable between 48Vdc-56Vdc, with a 200mV turn-ON overshoot, and it offers a hold time of 26ms at 110/300Vdc input. Connection is facilitated through screw-clamp connections. | Puls | Quick Quote | ||
| QTD20.241 PULS QTD20.241 is a power supply unit (PSU) and DC/DC-Converter with a 25% power reserve, designed for DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and features an intermediate DC-bus and galvanic isolation. The unit provides a rated current of 20A at 24Vdc, 17.5A at 28Vdc, and includes a 12W derating from +60°C to +70°C. Connection is facilitated through spring-clamp connections. As part of the Q-series, it measures W65mm x H124mm x D127mm and requires a supply voltage of 384Vdc to 672Vdc, with specific nominal voltages of 500Vdc, 575Vdc, and 600Vdc. The turn-ON voltage is 450Vdc, and the shutdown voltage is 325Vdc. The housing is made of aluminium, and it is designed for DC networks with a net width of 65 mm. The rated power is 480W at both 24Vdc and 28Vdc, with an adjustable output voltage of 24Vdc to 28Vdc and a 500mV turn-ON overshoot. Protection functions include output overvoltage protection, overload/short-circuit current protection, and resistance to back-feeding loads up to 34V. The unit boasts an efficiency of 0.95 at 600Vdc input, a peak current consumption of 3A, a 35s start-up delay, and rise times of 70ms and 110ms under specified conditions. The hold time is 22ms at 600Vdc input, with power dissipation/losses of 25.5W at full output load. Electrical durability is rated at various hours depending on the operating conditions, with a ripple of 100mVpp and an output stage capacitance of 950µF. | Puls | Quick Quote | ||
| CP10.241-60 PULS CP10.241-60 is a power supply unit designed for DIN rail mounting with an aluminium housing. It operates within an ambient air temperature range of -40 to +70°C and has a net width of 39 mm. The unit features a current consumption of 8A peak max. inrush at both 110Vdc and 96Vdc input. It boasts an efficiency of 0.945 at 110Vdc input and 0.943 at 960Vdc input, with dimensions of W39mm x H124mm x D117mm. The CP10.241-60 has a time delay of 600-700ms for start-up and a rise time of 45ms to 90ms depending on the load capacitance. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 11.6 W and 12.1 W for 110Vdc and 96Vdc inputs, respectively, at full output load. The output stage capacitance is 4400 µF. Electrical durability ranges from 112000 to 549000 hours depending on the operating conditions. The ripple is 50mVpp across a 20Hz to 20MHz range. This PSU/DC-DC Converter from the CP-series is designed for railway applications and features a DC-OK relay contact output, spring-clamp connections, and a supply voltage range of 67Vdc-154Vdc. It provides a rated current of 8.3A at 24Vdc, operates on a DC network, and offers a rated power of 200W. The output voltage is adjustable from 24Vdc to 28Vdc with a 200mV turn-ON overshoot, and it has a hold time of 34ms. | Puls | Quick Quote | ||
