AC/DC Power Supplies - Puls

PULS CS5.243 is a DIN rail mounting power supply unit encased in an aluminium housing, designed for a single-phase network. It operates within an ambient air temperature range of -10 to +70°C and has a net width of 32mm. The unit consumes 1.88A with a 120Vac input and 2.23A with a 100Vac input for a full 24Vdc output, featuring a peak inrush current of 56A at 120Vac and 47A at 100Vac. It boasts an efficiency of 0.9 at 120Vac input and 0.895 at 100Vac input. The dimensions are W32mm x H124mm x D117mm. It has a 120ms start-up delay and a rise time of 8ms under nominal input with a constant full current load without load capacitance, and 25ms with 5mF load capacitance. The CS5.243 includes protection functions such as output overvoltage protection, NTC for input inrush current limiting, and overload/short-circuit protection. It supports series or parallel operation for redundancy and is resistant to back-feeding loads up to 35V. Power dissipation is 13.5W at full output load with a 120Vac input, and the output stage capacitance is 1800µF. Its electrical durability ranges from 27,000 to 363,000 hours depending on the conditions. The ripple is 50mVpp, and it features a 20% power reserve. Part of the C-Line series, it includes a DC-OK relay contact output and screw-clamp connections. The supply voltage ranges from 90Vac to 132Vac, with a rated current of 6A at 24Vdc under 45°C and a rated power of 144W under 45°C. The output voltage is adjustable between 24Vdc and 28Vdc, with a 400mV turn-ON overshoot and a hold time of 78ms at 120Vac input.

PULS ML60.122 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -40 to +70°C and is designed for NEC Class 2 operation in cold environments down to -40°C. This unit has a rated current of 4.5A at 12Vdc and utilizes screw-clamp connections for connectivity. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) and from 88Vdc to 375Vdc, featuring a turn-ON voltage of 75Vac and a shutdown voltage of 65Vac. The ML60.122 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend. It is compatible with single-phase (1AC) or DC networks, has a rated power of 54W, and offers an adjustable output voltage range of 12Vdc to 15Vdc with a 200mV turn-ON overshoot. The unit's protection functions include an active input inrush current limiter. Efficiency rates vary based on input voltage, with 0.876 at 230Vac, 0.858 at 120Vac, and 0.841 at 100Vac. It features a peak current consumption of 6A at 230Vac input, with specific time delays for start-up and rise times under different conditions. Power dissipation is noted at 7.6W, and the electrical durability is rated at a minimum of 56,000 hours at +40°C. The ripple is specified at 50mVpp across a 20Hz to 20MHz range with a 50Ω load, and the output stage capacitance is 3000µF.

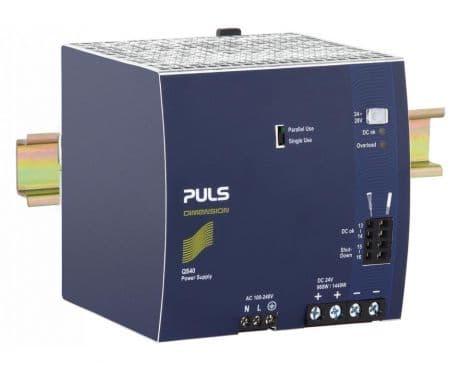

PULS QS40.481 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and is equipped with ATEX approval, a DC-OK relay contact output, and screw-clamp connections. This unit supports a supply voltage range of 85Vac-264Vac across various nominal voltages and frequencies, with specific turn-ON and shutdown voltages. It belongs to the Q-series and is housed in an aluminium casing with dimensions of W125mm x H124mm x D127mm. The QS40.481 is designed for single-phase networks, offering a rated current of 20A at 48Vdc and 17.8A at 54Vdc, with a derating power of 24W at temperatures ranging from +60°C to +70°C. Its rated power is 960W, with a short-term capacity of 1440W for up to 4 seconds, and an adjustable output voltage between 48Vdc and 54Vdc. Protection features include output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation to increase output power. The unit demonstrates high efficiency rates across various input voltages and has specific inrush current, time delay, hold time, power dissipation/losses, and electrical durability metrics. It also features a ripple of 150mVpp and an output stage capacitance of 3700µF.

PULS SLA3.100 is a power supply unit designed with NEC Class 2 and ATEX approval, compliant with EN 61000-3-2 PFC norm, featuring a DC-OK relay contact output. It serves as an AS-Interface power supply unit (PSU) encased in a robust metal housing. This unit offers screw-clamp connections for secure installation and measures W49mm x H124mm x D102mm. It supports a wide range of supply voltages, including AC options from 85Vac to 264Vac and a DC option from 230Vdc to 375Vdc, with a rated current of 2.8A at 30.6Vdc. Designed for DIN rail mounting, it operates within an ambient air temperature range of -10 to +70 °C. The SLA3.100 experiences a peak inrush current consumption of 49.7A at 230Vac input and 44.7A at 120Vac input. It is suitable for single-phase (1AC) or DC networks and includes protection functions such as output overvoltage protection (up to 55Vdc max.), NTC for input inrush current limiting, and overload/short-circuit protection. The output voltage is fixed at 30.6Vdc, with an efficiency of 0.905 at 230Vac input, a hold time of 26ms at 100Vac input, power dissipation/losses of 9.1W at full output load, and a ripple of 50mVpp across 20Hz to 20MHz at 50Ω.

PULS SLAD4.100 is a power supply unit designed with a PFC compliant to EN 61000-3-2 standards, featuring a DC-OK relay contact output. It serves as an AS-Interface power supply unit (PSU) and DC/DC-Converter, encased in a robust metal housing. This unit offers screw-clamp connections for secure installation and measures W40mm x H124mm x D102mm. It operates on a supply voltage range of 18Vdc-31.4Vdc, with a nominal 24Vdc, and delivers a rated current of 4A at 30.6Vdc, incorporating a derating curve from 3W/+60°C to +70°C. Designed for DIN rail mounting, it can function within an ambient air temperature range of -25°C to +70°C. The SLAD4.100 has a net width of 40 mm and a peak inrush current consumption of 1.8A. It is compatible with DC networks only and includes protection functions against output overvoltage (up to 36Vdc max.), with an active input inrush current limiter, and overload/short-circuit conditions (min. 5A/max. 12A current). Series or parallel operation is not supported. The output voltage is fixed at 30.6Vdc, with an efficiency of 0.905 at 24Vdc input. Power dissipation/losses are 12.7W at 24Vdc input with full output load. The unit features a 650ms start-up delay, a 100ms rise time under nominal input with constant full current load and 0mF load capacitance, and a 200ms rise time with 5mF load capacitance. Ripple is maintained at 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

PULS CP20.241-S1 is a power supply unit designed for DIN rail mounting with an aluminium housing. It features a net width of 48 mm and operates within an ambient air temperature range of -25 to +70°C. The unit has a current consumption of 11A peak max. inrush at 230Vac input and 7A peak max. inrush at 120Vac input. Its efficiency rates are 0.956 at 230Vac input, 0.942 at 120Vac input, and 0.936 at 100Vac input. The dimensions of the CP20.241-S1 are W48mm x H124mm x D127mm. It includes a 450ms start-up delay and a rise time of 145ms to 160ms under nominal input conditions. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit current protection. It supports series and parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. The power dissipation/losses are 22.1 W at 230Vac input and 29.6 W at 120Vac input, with an output stage capacitance of 8500 µF. Its electrical durability ranges from 31,000 to 488,000 hours depending on the operating conditions. The ripple is 50mVpp, and it functions as an AC/DC power supply unit with a 20% power reserve. The CP-series unit has ATEX approval, a DC-OK relay contact output, and spring-clamp connections. The supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with a rated current of 20A at 24Vdc. It is suitable for single-phase (1AC) or DC networks, has a rated power of 480W, and an adjustable output voltage of 24Vdc-28Vdc. The hold time is 32ms at 120/230Vac input.

Dimension Q-Series Power Supply, 120W

PULS PIM60.245 is a power supply unit that functions as an AC/DC PSU/converter with DIN rail mounting. It operates within an ambient air temperature range of -10 to +60°C with linear derating up to +70°C. The design includes a NEC Class 2 DC-OK relay contact output. It provides a rated current of 5A at 12Vdc from -10 to +60°C and 3.8A at 12Vdc at +70°C, utilizing screw-clamp connections. The supply voltage (AC) ranges from 90Vac to 264Vac for various nominal voltages and frequencies, with specific input overvoltage and turn-on/shutdown voltages detailed. Part of the PIM-series, it measures W36mm x H90mm x D91mm and has an IP20 degree of protection with a polycarbonate (PC) housing. Designed for single-phase networks, it offers a rated power of 60W at -10 to +60°C and 45.6W at +70°C, with an adjustable DC output voltage of 12Vdc to 15Vdc. Protection functions include output overvoltage and overload/short-circuit current protection, with specific resistance and current values provided. The unit is resistant to back-feeding loads up to 16V. Efficiency rates are noted for 230Vac and 120Vac inputs, alongside current consumption details for various input voltages and inrush current peaks. Time delay for start-up and rise, hold time, power dissipation/losses, and electrical durability at different conditions and temperatures are specified. Ripple and capacitance values are also provided, highlighting the unit's electrical characteristics.

PULS CP10.241-R2 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 39mm. The unit consumes current differently based on the input, including 1.14A with 230Vac input, 2.17A with 120Vac input, 2.63A with 100Vac input, and 2.35A with 110Vdc input, all at full output. It features a peak inrush current of 11A at 230Vac input and 7A at 120Vac input. With an IP20 degree of protection, the efficiency rates are 0.947 at 230Vac input and 0.93 at 120Vac input. Its dimensions are W39mm x H124mm x D117mm. The unit has a start-up delay of 240-300ms and rise times of 30ms and 75ms under specified conditions. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or redundancy. The power dissipation/losses are 13.4W and 18.1W for 230Vac and 120Vac inputs at full load, respectively. The output stage capacitance is 4400µF. Electrical durability varies with conditions, offering up to 531000 hours at 25°C with 5A output and 1AC 230Vac input. The ripple is 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit, part of the CP-series, is designed with a built-in decoupling MOSFET for 1+1 or N+1 redundancy and includes a 20% power reserve. It features DC-OK relay contact output and hot-swappable connectors. The supply voltage ranges from 88Vdc to 180Vdc for DC and 85Vac to 264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc up to +45°C, decreasing at higher temperatures. It supports single-phase (1AC) or DC networks and provides a rated power of 288W at -25 to +45°C, with linear derating up to +70°C. The output voltage is adjustable from 24Vdc to 25.4Vdc, with a 200mV turn-ON overshoot and a hold time of 37ms at 120/230Vac input.

PULS CP20.481 is a power supply unit designed for DIN rail mounting with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 48mm. The unit features a current consumption of 5.5A peak max. inrush at 230Vac input and 12A peak max. inrush at 120Vac input. Its efficiency rates are 0.963 at 230Vac input, 0.95 at 120Vac input, and 0.944 at 100Vac input. The dimensions of the CP20.481 are W48mm x H124mm x D127mm. It has a 450ms start-up delay and a rise time of 120ms under nominal input with a constant full current load and 0mF load capacitance, and 170ms with 10mF load capacitance. The unit includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. It is resistant to back-feeding loads up to 63V. Power dissipation/losses are 18.4W at 230Vac input and 25.1W at 120Vac input with full output load. The output stage capacitance is 2500µF. Electrical durability varies with conditions, reaching up to 509000 hours at 25°C and 5A output with 1AC 230Vac input. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit offers a 20% power reserve and includes a DC-OK relay contact output. It features screw-clamp connections and supports a supply voltage range of 88Vdc-180Vdc and 85Vac-264Vac, with a rated current of 10A at 48Vdc, and a rated power of 480W. The output voltage is adjustable between 48Vdc and 56Vdc, with a 500mV turn-ON overshoot and a hold time of 32ms at 120/230Vac input. It is suitable for single-phase (1AC) or DC networks.
