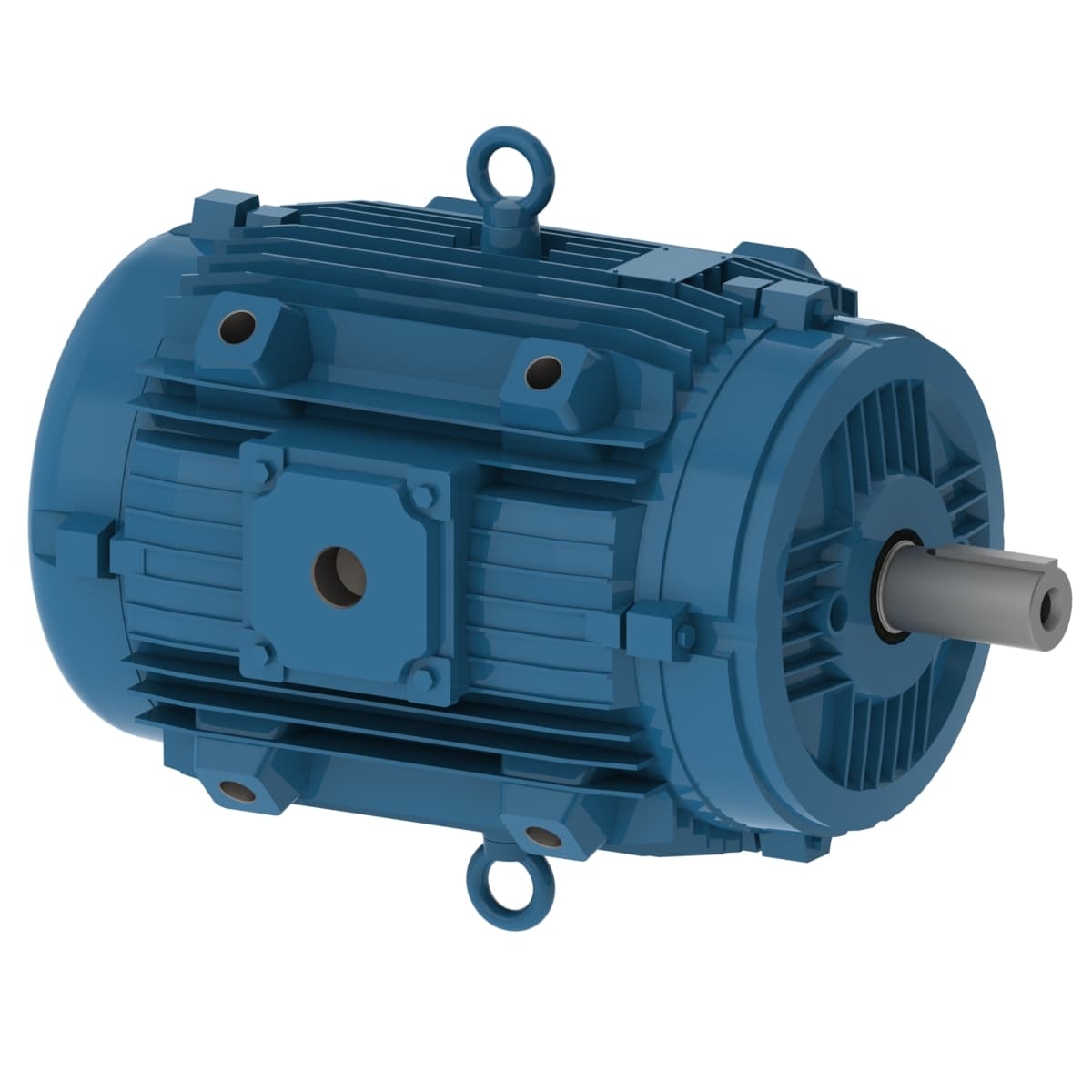

10837634 WEG AC Motors
Product Details
- Terminal box¹ Left position
- Number of poles 4
- Flange Without
- Output rating 10 HP
- Approx. weight³ 151 lb
- Synchronous speed 1800 rpm
- Voltage 230/460 V
- Standard NEMA MG-1
- Noise level² 58.0 dB(A)
- Degree of Protection IP55
- Rotation¹ Both (CW and CCW)
- Mounting F-1
- Altitude 1000 m.a.s.l.
- Duty Cycle Cont.(S1)
- Enclosure IC411 - TEFC
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Temperature rise 105 K
- Service factor 1.25
- L. R. Amperes 161/80.6 A
- Design B
- Insulation Class F
- Moment of inertia (J) 1.25 sq.ft.lb
- Rated torque 29.8 ft.lb
- Breakdown torque 250 %
- Locked rotor time 27s (cold) 15s (hot)
- Locked rotor torque 200 %
- LRC 6.3x(Code H)
- No load current 10.5/5.25 A
- Rated voltage 230/460 V
- Slip 2.22 %
- Material (FERT) 50006910
- Number of Poles 4
- Output 10 HP (7.5 kW)
- Rated speed 1760 rpm
- Rated current 25.6/12.8 A
- Frequency 60 Hz
- Frame 215Y
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
