10673195 WEG AC Motors
Product Details
- Terminal box¹ Left position
- Number of poles 2
- Flange Without
- Output rating 5 HP
- Noise level² 69.0 dB(A)
- Synchronous speed 3600 rpm
- Voltage 208-230/460 V
- Standard NEMA MG-1
- Approx. weight³ 107 lb
- Enclosure IC418 - TEAO
- Rotation¹ Both (CW and CCW)
- Duty Cycle Cont.(S1)
- Mounting F-1
- Altitude 1000 m.a.s.l.
- Moment of inertia (J) 0.2361 sq.ft.lb
- Degree of Protection IP55
- Temperature rise 80 K
- Starting Method Direct On Line
- Service factor 1.25
- Ambient temperature -20°C to +40°C
- Rated torque 7.48 ft.lb
- No load current 4.14-4.80/2.40 A
- Breakdown torque 380 %
- Locked rotor time 46s (cold) 26s (hot)
- Design B
- Locked rotor torque 280 %
- L. R. Amperes 119-107/53.6 A
- LRC 9.0x(Code K)
- Insulation Class F
- Frame 184Y
- Number of Poles 2
- Rated voltage 208-230/460 V
- Slip 2.50 %
- Material (FERT) 50006910
- Rated speed 3510 rpm
- Rated current 13.2-11.9/5.96 A
- Output 5 HP (3.7 kW)
- Frequency 60 Hz
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
10673195 Related Documents
Manufacturer warranty
10673195 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 10673195 with other AC Motors products
Terminal box¹
Number of poles
Flange
Output rating
Noise level²
Synchronous speed
Voltage
Standard
Approx. weight³
Enclosure
Selected product
10673195
WEG

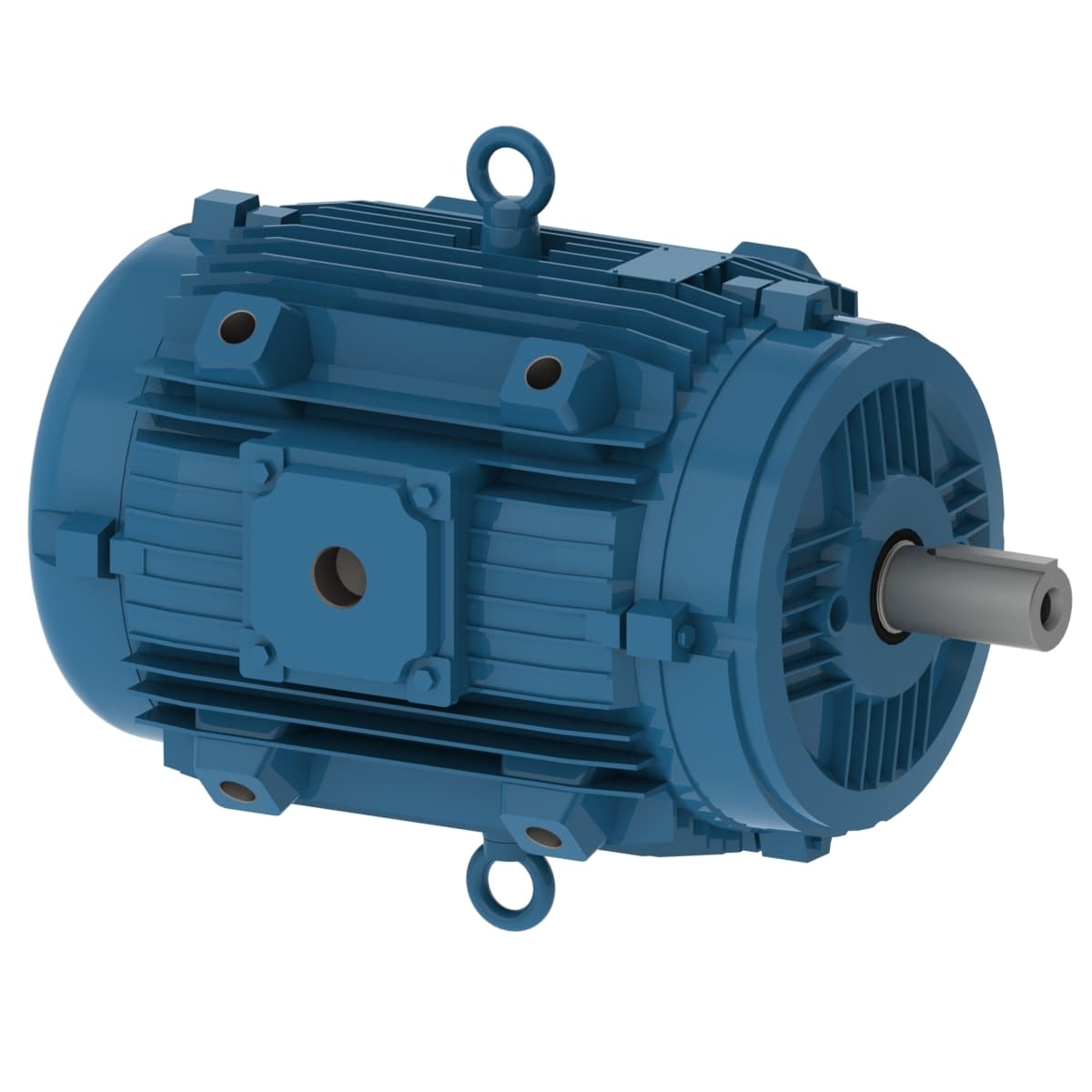

W21 NEMA Premium Efficiency 5 HP 2P 184Y 3Ph 208-230/460 V 60 Hz IC418 - TEAO - Pad mounted
