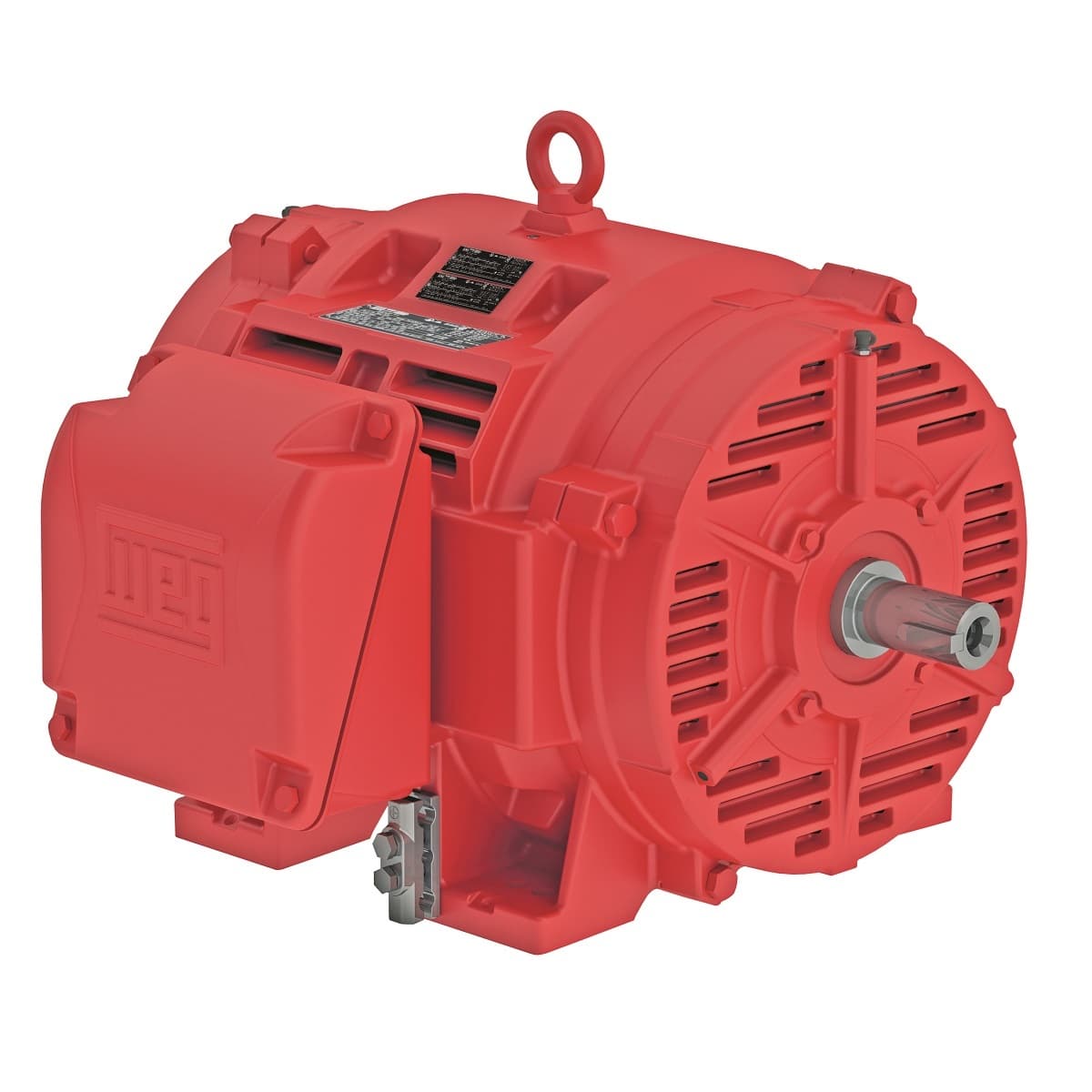

10036OP3JFP365TS-W40 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 380 V
- Output Rating 100 HP
- Rated Speed 3550 rpm
- Flange Type Without
- Terminal box¹ Left position
- Flange Without
- Output rating 100 HP
- Voltage 380 V
- Standard NEMA MG-1
- Number of poles 2
- Synchronous speed 3600 rpm
- Rotation¹ Both (CW and CCW)
- Altitude 1000 m.a.s.l.
- Degree of Protection IP23
- Enclosure IC01 - ODP
- Ambient temperature -20°C to +40°C
- Approx. weight³ 740 lb
- Temperature rise 80 K
- Mounting F-1
- Insulation Class F
- Starting Method Direct On Line
- Duty Cycle Cont.(S1)
- Rated torque 148 ft.lb
- Locked rotor time 27s (cold) 15s (hot)
- Service factor 1.15
- Design B
- Moment of inertia (J) 6.80 sq.ft.lb
- Locked rotor torque 170 %
- Breakdown torque 229 %
- LRC 5.7x(Code F)
- No load current 31.5 A
- Rated current 139 A
- Rated speed 3550 rpm
- L. R. Amperes 794 A
- Rated voltage 380 V
- Slip 1.39 %
- Number of Poles 2
- Frequency 60 Hz
- Output 100 HP (75 kW)
- Frame 364/5TS
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
