770-734 WAGO Electrical Connector Accessories

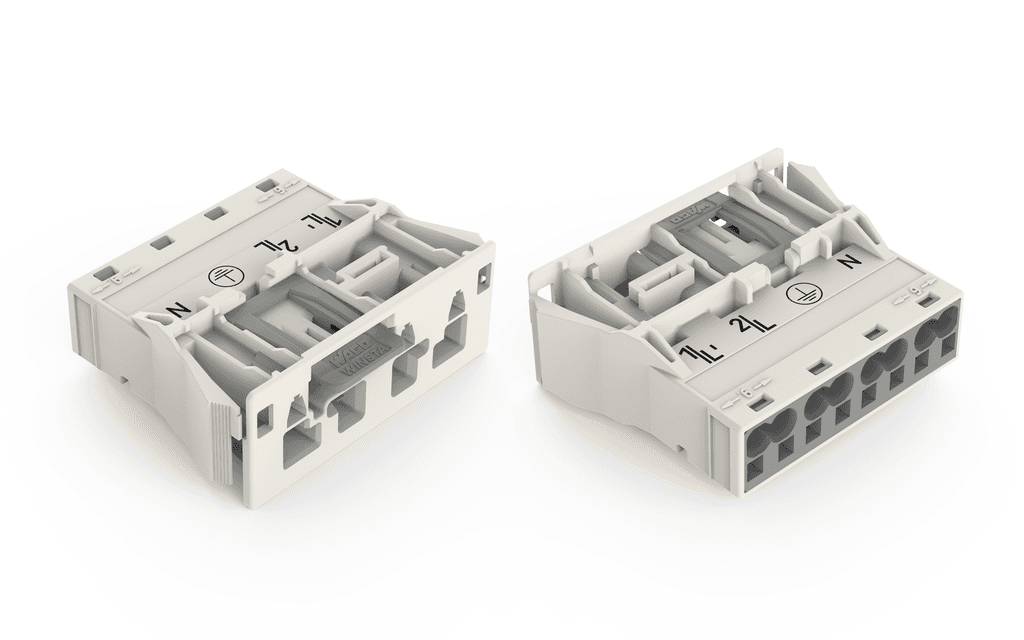

WAGO 770-734 is a snap-in connector designed for general mains applications, featuring a nominal voltage of 400V (III/3) as per IEC/EN 60664-1, a rated impulse voltage of 6kV, and a rated current of 25A. For the US market, it has a rated voltage of 600V and a rated current of 23A according to UL 1977, with specific versions suitable for current interruption in select applications below 16A. The connector supports a nominal cross-section of 4mm2 / 12 AWG, accommodating various conductor types including solid, stranded, and fine-stranded conductors with specified ranges and termination methods. It has 8 connection points, 4 total number of potentials, and features a preceding PE contact. The physical dimensions include a pin spacing of 10mm, width of 45.5mm, height of 18.5mm, and depth of 41.1mm. It offers IP20 protection, increasing to IP2xC when mated, and is designed with mismating protection and a locking lever for secure connections. The housing is made of white Polyamide (PA66) with a flammability class of UL94 V0, and the contacts are copper or copper alloy with tin plating. It operates within a temperature range of -35...+85°C for continuous operation, with a processing temperature range of -5...+40°C. The product is RoHS compliant, packaged in boxes of 100 pieces, and has a customs tariff number of 85366990990, indicating its origin in Germany.
