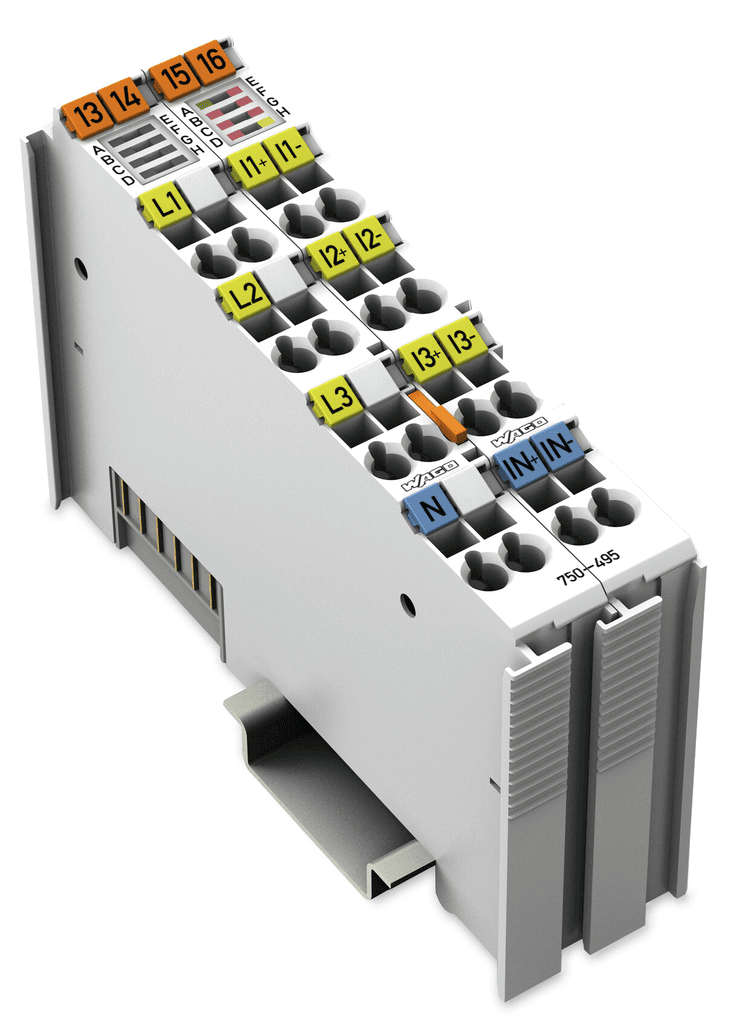

750-495 WAGO Programmable Logic Controllers

Wago 750-495 is an I/O unit designed as a standard analog input slice module. It operates with a supply voltage of 5Vdc provided by the system and does not require an AC supply voltage. This unit features push-in spring cage-clamp connections for easy installation and is designed for operation in ambient air temperatures ranging from -40°C to +55°C, with storage temperatures from -40°C to +85°C. The 750-495 supports an IP20 communication protocol and is mounted on a DIN-35 rail. Its dimensions are H100mm x W24mm x D67.8mm, and it is housed in a polycarbonate (PC) / Polyamide (PA) 6.6 casing. The module includes 3 x analog inputs for 3-phase voltage measurement (400Vac / 690Vac / 45...65Hz / 24-bits conversion) and 4 x analog inputs for differential current measurement (maximum continuous operating voltage of 1A). It features vibration resistance according to EN 60068-2-6 (4g) and shock resistance according to EN 60068-2-27 (15g). The unit has a control circuit rated current of 100mA (5Vdc from the system supply) and a measuring error of ±0.5%. It is designed to withstand 95% relative humidity (non-condensing).
