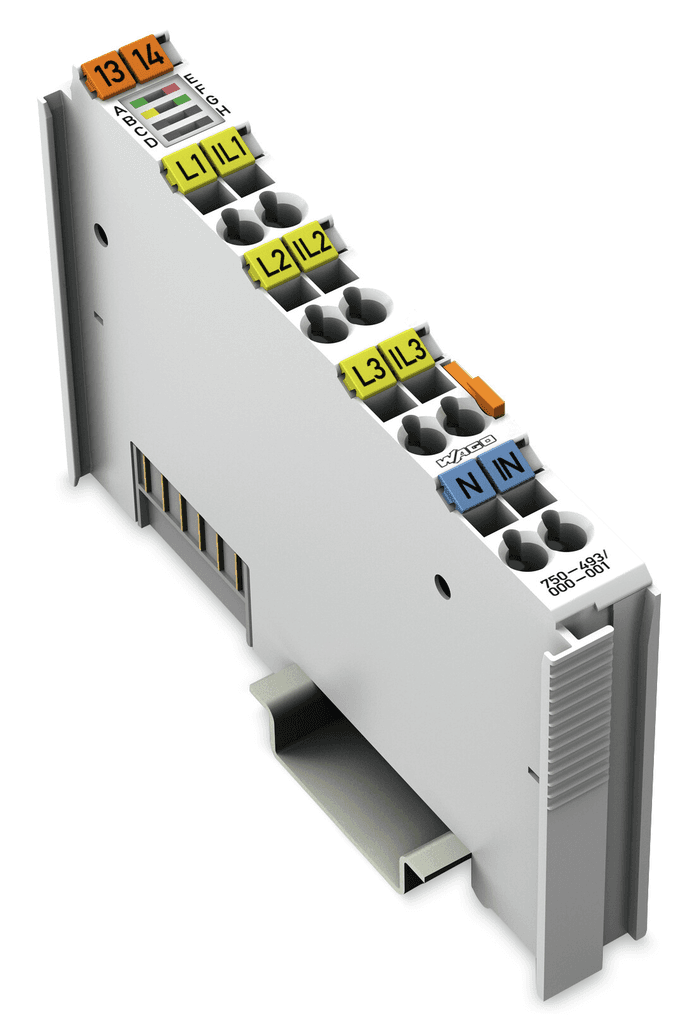

750-493/000-001 WAGO Programmable Logic Controllers

Wago 750-493/000-001 is an I/O unit designed as a standard analog input slice module for 3-phase power measurement. It operates with a supply voltage of 5Vdc provided by the system and does not require an AC supply voltage. This unit features push-in spring cage-clamp connections for easy installation and is designed to be mounted on a DIN-35 rail. It is capable of operating within an ambient air temperature range of -40°C to +55°C and can be stored in temperatures ranging from -40°C to +85°C. The module supports an IP20 communication protocol and has a rated insulation voltage (Ui) of 277Vac/Vdc for 480Vac at 5A with a frequency range of 45...65Hz. It offers a 16-bits conversion speed for accurate 3-phase power measurement. The unit's mechanical design includes a polycarbonate (PC) / Polyamide (PA) 6.6 housing, ensuring durability, and it is shock-resistant according to EN 60068-2-27 with a 15g impact. The module has six analog inputs and features a response time tailored for efficient processing. Configuration options include WAGO-I/O-CHECK, CODESYS Library, and e!COCKPIT, allowing for versatile application setups. The unit is designed to handle a connection capacity of 100mA (5Vdc) from the system supply and offers a measuring error of ±0.5%. It is built to withstand up to 95% relative humidity (non-condensing), ensuring reliable operation in various environmental conditions.
