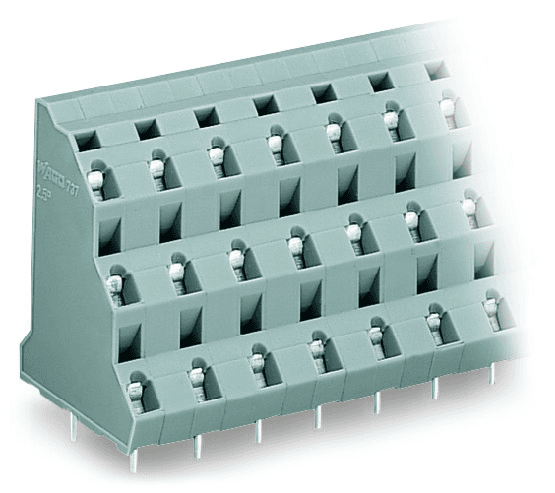

737-758 WAGO Industrial Automation Components

WAGO 737-758 is an automation part designed for printed circuit connections, featuring a nominal voltage of 630V (III/3), 1000V (III/2 and II/2) with a rated impulse voltage of 8kV for both overvoltage categories III/2 and III/3. It has a rated current of 21A according to IEC/EN standards. For UL and CSA ratings, it operates at a rated voltage of 300V and a rated current of 10A for both Use Group B and D. The part includes 24 connection points, supports a single connection type with three levels, and utilizes CAGE CLAMP technology for secure connections. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), with specific guidelines for ferruled conductors. The component has a 45-degree conductor connection direction to PCB, a pole number of 24, and a pin spacing of 10mm. Its physical dimensions are 76mm in width, 44mm in height, 31mm in depth, with a height from the surface of 40mm. The solder pin length is 4mm, and it is designed for through-hole technology (THT) PCB contact. Made from Polyamide (PA66) in gray, it meets the UL94 V0 flammability class and features chrome-nickel spring steel for the clamping spring and electrolytic copper with tin plating for contacts. It operates within a temperature range of -60 to +105°C, is RoHS compliant, and comes in a box of 12 pieces with the country of origin being Poland.
