721-206/031-000 WAGO Electrical Connector Accessories

721-206/031-000 on Powermatic Associates
WAGO

Part#:721-206/031-000

Manufacturer:WAGO

Category:Electrical Connector Accessories

Product Lifecycle:Active

Product description

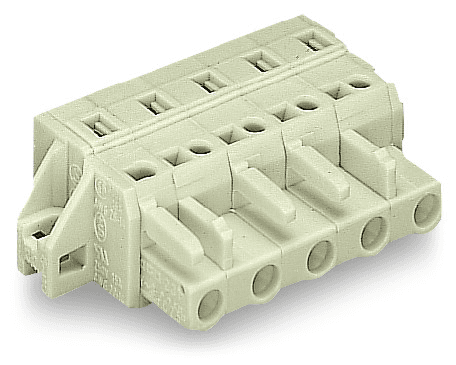

721-206/031-000 WAGO - 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 6-pole; 100% protected against mismating; clamping collar; 2,50 mm²; light gray

Product Details

  • Weight
    13.45000354 g
  • Country Of Origin
    Germany
  • HTS Code
    85366990990
  • Width
    2.256 inches, 57.3 millimeters
  • Weight
    13.450 grams
  • Voltage
    300 volts, 500 volts
  • Strip Length
    0.35 inches, 9 millimeters
  • Package Type
    Box
  • Mounting Type
    Feed-through Mounting, Mounting Flange, Panel Mounting
  • Insulation Material
    Polyamide
  • Height
    0.563 inches, 14.3 millimeters
  • Flammability Class
    V0
  • Depth
    1.041 inches, 26.45 millimeters
  • Current
    15 amperes, 16 amperes
  • Country of Origin
    Germany
  • Contact Type
    Tin
  • Contact Material
    Copper Alloy
  • Connection Type
    For Conductor
  • Conductor Size
    12 american wire gauge, 2.5 millimeters
  • Color
    Gray
  • Actuator
    Operating Tool

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 721-206/031-000 on Powermatic Associates is $7.15. Order now.


About the product

WAGO 721-206/031-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), and a rated impulse voltage of 6kV across these categories. The rated current is 16A. UL and CSA approvals include ratings of 300V and 600V with currents ranging from 10A to 15A, depending on the use group. It features 6 connection points, a single connection type with CAGE CLAMP technology, and supports solid and fine-stranded conductors of various sizes. The connector has a 6-pole number, 7.5mm pin spacing, and dimensions of 57.3mm in width, 14.3mm in height, and 26.45mm in depth. It offers variable coding, multiple mounting options including mounting flange, feed-through, and panel mounting, with anti-rotation protection. The female connector/socket is made from light gray Polyamide (PA66), with a flammability class of UL94 V0, and tin-plated copper alloy contacts. It operates within a temperature range of -60 to +85°C, has a fire load of 0.229MJ, and weighs 13.4g. The product is RoHS compliant, packaged in boxes of 25 pieces, and manufactured in Germany with a GTIN of 4044918381529.
