209-546 WAGO Industrial Automation Components

209-546 on Powermatic Associates
WAGO

Part#:209-546

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

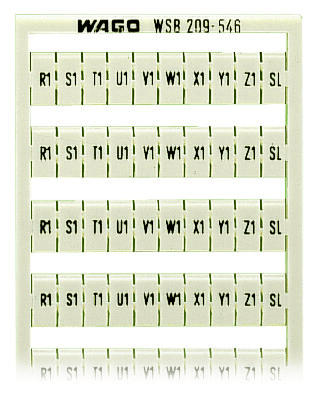

209-546 WAGO - WSB marking card; as card; MARKED; R1, S1, T1, U1, V1, W1, X1, Y1, Z1,SL (10x); not stretchable; Horizontal marking; snap-on type; white

Product Details

  • Weight
    7.800002051 g
  • Country Of Origin
    Germany
  • HTS Code
    49119900000
  • Country of Origin
    Germany
  • Package Type
    Box
  • Color
    White
  • Weight
    7.800 grams

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 209-546 on Powermatic Associates is $6.50. Order now.

About the product

WAGO 209-546 is a marker card designed for thermal transfer marking with a short circuit breaking rating. It features horizontal marking of consecutive symbols, each strip marked with the symbol "R1" in black color. The product specifications include a diameter of T1, rated operating voltage of U1, primary current of V1, sensing distance of W1, light color of X1, type of network Y1, and a length of Z1 meters. It operates at a frequency of SL. The marker card comes in a delivery form of 10 strips, with 10 markers per card, adhering to a flammability class of UL94 V2. Each marker and strip width is 5mm, with smear resistance according to EN 60998-12004, and the material is white, UV resistant as per EN 60068-2-52010 Procedure B, halogen-free, weighing 7.8g with a fire load of 0.234MJ. This product falls under the product group 2 (Terminal Block Accessories), with eClass 10.0 and 9.0 classifications of 27-14-11-37, and ETIM classifications of EC000761 for both versions 8.0 and 7.0. It is packaged in boxes of 50 pieces, with a smaller packaging unit of 5 pieces, and has a GTIN of 4017332274937. The country of origin is Germany, with a customs tariff number of 49119900000. It is RoHS compliant without any exemptions.
