TTMS-100-LIUPN-H1140 Turck Temperature Sensors

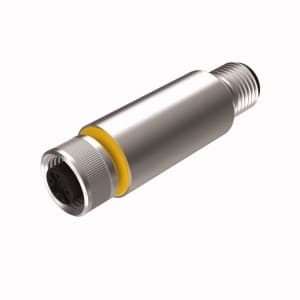

Turck TTMS-100-LIUPN-H1140 TTMS-100-LIUPN-H1140 Temperature Detection, Miniature Transmitter for External Probes
Turck

Part#:TTMS-100-LIUPN-H1140

Manufacturer:Turck

Alt. Part#:9910654

Product Lifecycle:Active

Get a quick Quote!

TTMS-100-LIUPN-H1140 Temperature Detection, Miniature Transmitter for External Probes

About the manufacturer: Turck is one of the manufacturers that offers Temperature Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TTMS-100-LIUPN-H1140 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    25 g
  • Housing material
    Stainless steel, 1.4404 (AISI 316L)
  • Electrical connection
    Connector, M12 × 1
  • Ambient temperature
    -40…+80 °C
  • Protection class
    IP67
  • Communication protocol
    IO-Link
  • Current output
    4…20 mA
  • Electrical output
    Current output (2-wire), Switching output
  • Operating voltage
    15…30 VDC
  • Process connection
    M12 × 1
  • Design
    Without display (external probe)
  • Measuring range
    -210…650 °C
  • Detection type
    medium contact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


TTMS-100-LIUPN-H1140 Description

Turck TTMS-100-LIUPN-H1140 is a sensor designed for temperature measurement within the TTM series. This sensor features a 1.4404 (316L) stainless steel housing and is equipped with a 4-pin M12 Eurofast QD male connector alongside an M12 threaded male connection port. It operates on a supply voltage of 10-24Vdc, supporting both 12Vdc and 24Vdc nominal voltages. The sensor is capable of functioning in ambient air temperatures ranging from -40°C to +80°C and offers a degree of protection rated at IP67. It is designed to withstand pressures up to 100bar (1450psi). The TTMS-100-LIUPN-H1140 provides one digital output (15-30Vdc; NPN/PNP) and one analog output (4-20mA), suitable for various applications. It can measure temperatures between -210°C and +650°C. Additionally, it includes protection functions against short-circuit and reverse polarity.



Related documents TTMS-100-LIUPN-H1140 Specs
