TN-CK40-H1147 Turck RFID Systems

Name: TN-CK40-H1147
Brand: Turck
Price: 529.5 USD
Availability: BackOrder

Turck TN-CK40-H1147 TN-CK40-H1147 HF Read/Write Head

Part#:TN-CK40-H1147

Manufacturer:Turck

Alt. Part#:7030006

Product Lifecycle:Active

Get a quick Quote!

TN-CK40-H1147 HF Read/Write Head

About the manufacturer: Turck is one of the manufacturers that offers RFID Systems that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TN-CK40-H1147 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
115 g
Technology
HF (13.56 MHz)
Design
Rectangular
Read/Write distance max.
115 mm
Ambient temperature
-25…+70 °C
Protection class
IP67

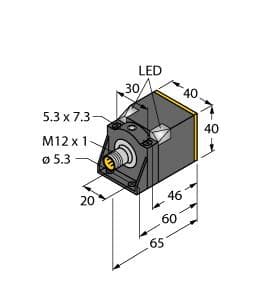

Construction size
65 x 40 x 40 mm, CK40
Fieldbus Protocol
Connection to RFID interface
Mounting
Non-flush
Radio communication and protocol standards
ISO 15693, NFC Typ 5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TN-CK40-H1147 Description

Turck TN-CK40-H1147 is an RFID Reader/Writer belonging to the RFID stationary HF transponders series. This part features a rotatable connector and operates as an RFID HF transceiver read/write head. It is equipped with a 4-pin M12 connector for connectivity. The dimensions of this device are H40mm x W65mm x D40mm, and it is designed for a supply voltage range of 10-30Vdc, with nominal values at 12Vdc and 24Vdc. The mounting mode is specified as Non-flush, and it can operate within an ambient air temperature range of -25 to +70°C. The TN-CK40-H1147 offers a degree of protection rated at IP67, has a rectangular shape, and provides a maximum read/write distance of 115mm. The transmission frequency is at the High Frequency (HF) of 13.56 MHz.

$529.50

Request a quote, and we will send availability within minutes.

Select Qty:

$529.50

$529.50 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
