RU600U-M30M-2UP8X2-H1151 Turck Ultrasonic Sensors

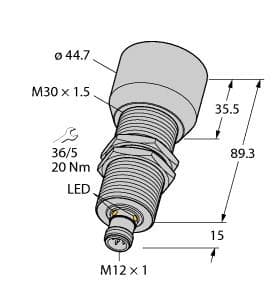

Turck RU600U-M30M-2UP8X2-H1151 is an ultrasonic sensor from the RU600U series, designed with a 15° sonic cone diffuse mode for front sensing. This sensor features ultrasonic sensor TEACH-by-wire and Window mode, both programmable for versatile application. It is constructed with a chrome-plated brass housing and a sensing face made from PET (Polyethylene terephthalate), PU (Polyurethane), and Epoxy, ensuring durability. The sensor is equipped with a 5-pin M12 Eurofast QD male connector for easy connection. It operates on a supply voltage of 15-30Vdc, with 24Vdc nominal, and can function within an ambient air temperature range of -25°C to +50°C. With an IP67 degree of protection, this sensor is designed for robust use in various environments. Its shape is an M30 partially threaded medium length cylindrical/barrel, and it offers 2 x digital outputs (10.8-30Vdc; PNP) for signal processing. The sensing distance ranges from 600-6000mm, with a no-load current consumption of 50mA. It features a maximum switching frequency of 1.6Hz, short-circuit (pulsed) and reverse polarity protection functions for safety, and can operate in either NO (Normally Open) or NC (Normally Closed) modes, which are programmable. The thread size is M30, with a transmission frequency of 75kHz / 0.075 MHz and a measurement accuracy (resolution) of 1mm. The control circuit is rated at 50mA / 0.05 A.
