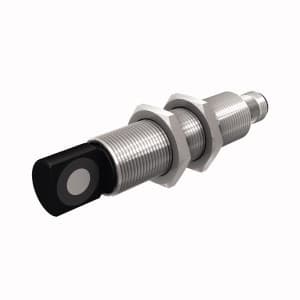

RU130U-M18ES-LI8X2-H1151 Turck Ultrasonic Sensors

Turck RU130U-M18ES-LI8X2-H1151 is an ultrasonic sensor from the RU130U series, designed with a 16° sonic cone for diffuse mode side sensing. This sensor features ultrasonic sensor TEACH-by-wire functionality and is constructed with a chrome-plated brass housing and a sensing face made of PET (Polyethylene terephthalate), PU (Polyurethane), and Epoxy. It comes pre-equipped with a 5-pin M12 Eurofast QD male connector for connectivity. The sensor operates on a supply voltage of 15-30Vdc, with 24Vdc nominal, and can function within an ambient air temperature range of -25°C to +70°C. It offers a degree of protection rated at IP67 and has a partially threaded barrel shape with an M18 thread size. The RU130U-M18ES-LI8X2-H1151 features one digital output (15-30Vdc; PNP; fixed threshold; 150mA max.) and one analog output (4-20mA), with a sensing distance ranging from 150-1300mm. Its current consumption is 50mA under no-load conditions, and it has a maximum switching frequency of 6.9Hz. The sensor includes protection functions against short-circuit (pulsed) and reverse polarity, operates with a transmission frequency of 200kHz / 0.2 MHz, and offers a measurement accuracy (resolution) of 1mm, with a control circuit rated current of 50mA / 0.05 A.
