RK 4.5T-12-RS 4.5T Turck Industrial Automation Components

RK 4.5T-12-RS 4.5T on Powermatic Associates
Turck

Part#:RK 4.5T-12-RS 4.5T

Manufacturer:Turck

Alt. Part#:U5238-07

Product Lifecycle:Active

In-stock parts: 3

Nov 23, 2024

RK 4.5T-12-RS 4.5T Actuator and Sensor Cordset, Extension Cable

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RK 4.5T-12-RS 4.5T Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    603 g
  • RoHS
    Yes
  • Country Of Origin
    MEX
  • HTS Code
    8544429090
  • Weight
    603.281 grams
  • Length
    12.0 meters
  • Country of Origin
    Mexico
  • Cable length (L)
    12.0  m
  • Approvals
    UL 2238, CSA C22.2 No. 182.3, CE, RoHS
  • Cable Jacket Color
    Gray
  • Cable Jacket Material
    PVC
  • Current
    4 amperes
  • Voltage
    250 volts
  • Connector A - Style
    Straight, Female
  • Connector B
    M12 × 1
  • Material coupling/housing B
    Brass
  • Number of Conductors
    5
  • Connector B - Style
    Straight, Male
  • Material coupling/housing A
    Brass
  • Connector A
    M12 × 1
  • Connector A - Number of Pins
    5
  • Application
    Actuator and Sensor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RK 4.5T-12-RS 4.5T Description

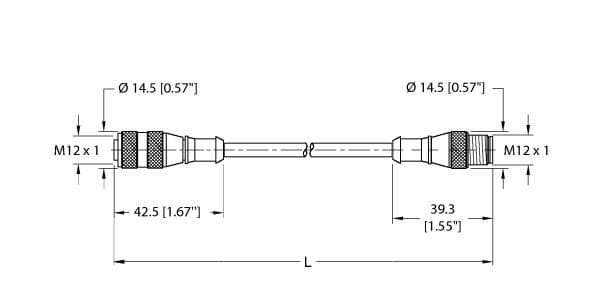

Actuator and Sensor Cordset, Extension Cable, Cable length (L) 12 m, M12, Female, Straight, 5-pin, M12, Male, Straight, 5-pin, IP68, IP69K, Instrumentation Tray Cable, Gray PVC jacket, 5X22 AWG, Sunlight Resistant, -40 Cold Bend Rating, Oil Resistant, Flame Ratings: UL 1685 FT4, UL1061, CSA FT4, Flexlife® and C-Track Approved, Cable length: 12 m

Related documents RK 4.5T-12-RS 4.5T Specs

RK 4.5T-12-RS 4.5T edb_U5238-07_eng_us.pdf
