RI360P2-QR20-LU4X2-H1141 Turck Encoders
Part#:RI360P2-QR20-LU4X2-H1141
Manufacturer:Turck
Alt. Part#:100001896
Product Lifecycle:Active
Get a quick Quote!

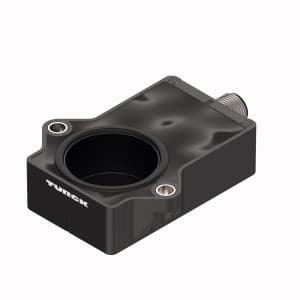

RI360P2-QR20-LU4X2-H1141 Miniature Encoder, With Analog Output, Premium Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI360P2-QR20-LU4X2-H1141 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 102 g
- Housing material Plastic, Ultem
- Protection class IP68/IP69K
- Ambient temperature -40…+85 °C
- Electrical connection Connector, M12 × 1
- Voltage output 0.5…4.5 V
- Output function Analog output
- Shaft diameter D [mm] 6 mm6.35 mm
- Operating voltage 8…30 VDC
- Flange type Flange without mounting element
- Output type Absolute singleturn
- Measuring range 0…360°

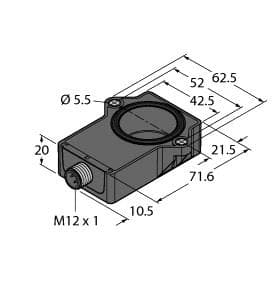

- Construction size 71.6 x 62.6 x 20 mm
- Shaft Type Blind hole shaft
- Technology Contactless
- Encoder line Premium-Line
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI360P2-QR20-LU4X2-H1141 Description
Turck RI360P2-QR20-LU4X2-H1141 is a contactless rotary inductive angle sensor designed for precise angular position detection within a range of 0° to +360°. It operates within an ambient air temperature range of -25 to +85°C and features a blind hole shaft design that is resistant to washdown environments. This sensor is equipped with a 4-pin M12 Eurofast QD male connector for easy integration and belongs to the Q-track QR20 series. With dimensions of H63mm x W72mm x D20mm, it has a rectangular shape and is constructed with a durable Plastic Ultem housing. The sensor offers a degree of protection rated at IP68 and IP69K, ensuring its suitability for harsh conditions. It requires a supply voltage of 8Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and features a 1/4" bore size. The RI360P2-QR20-LU4X2-H1141 provides an analog output (0.5Vdc-4.5Vdc), has a resolution of ≤0.09° with a 12-bit resolution, and includes a green LED for visual position indication and power status. It supports a sampling rate of 800Hz, has a measurement accuracy of 0.09° resolution, and consumes 100mA of current. Protection functions include short-circuit and reverse polarity protection.
Related documents RI360P2-QR20-LU4X2-H1141 Specs
