RI20P1-QR20-LU4X2-0.24-AMP01-3P Turck Encoders
Part#:RI20P1-QR20-LU4X2-0.24-AMP01-3P
Manufacturer:Turck
Alt. Part#:100000195
Product Lifecycle:Active
Get a quick Quote!
RI20P1-QR20-LU4X2-0.24-AMP01-3P Miniature Encoder, With Analog Output, Premium Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI20P1-QR20-LU4X2-0.24-AMP01-3P Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 122 g
- Protection class IP68/IP69K
- Voltage output 0.5…4.5 V
- Housing material Plastic, Ultem
- Electrical connection Cable with connector, AMP Superseal
- Ambient temperature -40…+85 °C
- Cable length (L) 0.240 m
- Output function Analog output
- Encoder line Premium-Line
- Shaft diameter D [mm] 6 mm6.35 mm
- Measuring range -10…10°

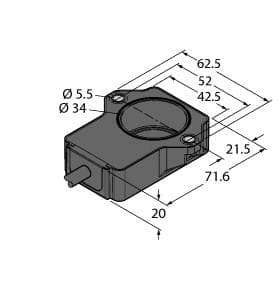

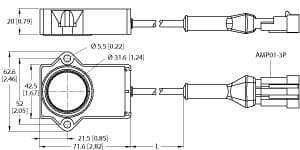

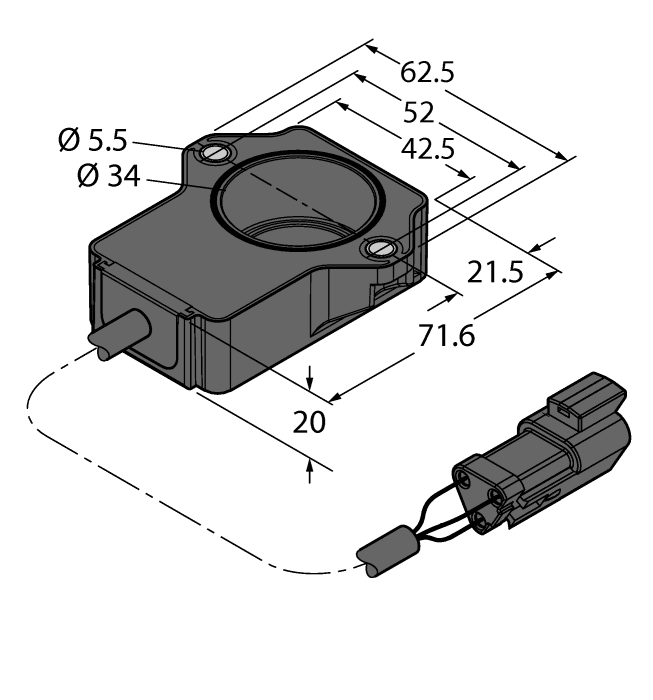

- Construction size 71.6 x 62.6 x 20 mm
- Operating voltage 8…30 VDC
- Flange type Flange without mounting element
- Output type Absolute singleturn
- Shaft Type Blind hole shaft
- Technology Contactless
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI20P1-QR20-LU4X2-0.24-AMP01-3P Description

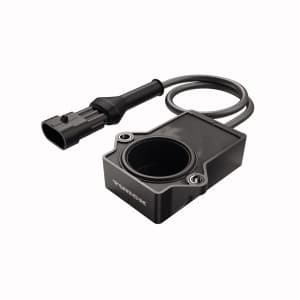

Turck RI20P1-QR20-LU4X2-0.24-AMP01-3P is a contactless rotary inductive angle sensor designed for precise angular position detection within a range of 0° to +20°. It operates within an ambient air temperature range of -25°C to +85°C and features a blind hole shaft design that is resistant to washdown, making it suitable for harsh environments. This sensor is part of the Q-track QR20 series and comes pre-wired with a 24cm pigtail terminated with a 3-pin connector for easy installation. It has dimensions of H63mm x W72mm x D20mm and offers a high degree of protection with IP68 and IP69K ratings. The sensor requires a supply voltage of 8Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and is housed in a durable Plastic Ultem casing. It features a 6mm bore size and provides protection against short-circuit and reverse polarity incidents. The sensor delivers an analog output of 0.5Vdc to 4.5Vdc and boasts a resolution of ≤0.09° with a 12-bit resolution. A green LED serves as a multifunctional visual position indicator, and another green LED indicates power ON status. The sensor's measurement accuracy is supported by a resolution of 0.09°, and it has a current consumption of 100mA. Its rectangular shape and 800Hz sampling rate make it a versatile choice for a wide range of applications requiring precise angle measurement.
Related documents RI20P1-QR20-LU4X2-0.24-AMP01-3P Specs
