RI-10T10C-2B250-H1181 Turck Encoders
Part#:RI-10T10C-2B250-H1181
Manufacturer:Turck
Alt. Part#:1545535
Product Lifecycle:Active
Get a quick Quote!
RI-10T10C-2B250-H1181 Incremental Encoder, Industrial Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI-10T10C-2B250-H1181 Turck price in the box on the right side or send a quick quote.
Product Details
- Protection class housing IP65
- Protection class shaft IP65
- Housing material Die-cast zinc
- Technology Optical
- Flange diameter Ø 58 mm
- Encoder line Industrial-Line
- Ambient temperature -40…+85 °C
- Protection class IP67
- Output function Push-Pull/HTL, with inverted signals
- Electrical connection Connector, M12 × 1
- Operating voltage 10…30 VDC
- Output type Incremental
- Shaft diameter D [mm] 10 mm
- Shaft Type Solid shaft
- Flange type Clamping flange
- Resolution, incremental 250 ppr
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI-10T10C-2B250-H1181 Description

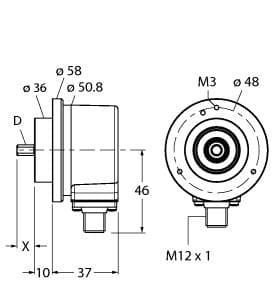

Turck RI-10T10C-2B250-H1181 is a compact incremental rotary encoder featuring a 58mm clamping flange mounting and a solid shaft clamping flange optical sensing design. It operates within an ambient air temperature range of -40 to +85°C and is pre-equipped with a radial 8-pin M12 Eurofast QD male connector. This encoder falls under the Type RI-10 series and has dimensions including a 2" casing diameter, a 10mm shaft diameter, and a 20mm shaft length. It offers IP65 protection and requires a supply voltage of 10Vdc-30Vdc, with a nominal range of 12Vdc-24Vdc. The encoder supports a 300kHz pulse frequency and is constructed with a die-cast metal housing, stainless steel shaft, butyl rubber shaft seal, stainless steel disc table, and stainless steel packing ring. It features 1 x digital output (push-pull; 10Vdc-30Vdc), and includes protection functions against short-circuit, bearing lock, magnetic field, and reverse polarity. The maximum rotational speed is 12000rpm, with a moment of inertia of 1.8 x 10^-6kg.m^2 and a resolution of 250ppr (pulses/revolution). Its current consumption is 50mA with no load, and it can withstand a maximum radial load of 80 N and a maximum axial load of 40 N.
