RI-10SA1Z2-2K2500-H1181 Turck Encoders
Part#:RI-10SA1Z2-2K2500-H1181
Manufacturer:Turck
Alt. Part#:1545541
Product Lifecycle:Active
Get a quick Quote!
RI-10SA1Z2-2K2500-H1181 Incremental Encoder, Industrial Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI-10SA1Z2-2K2500-H1181 Turck price in the box on the right side or send a quick quote.
Product Details
- Protection class IP67
- Encoder line Industrial-Line
- Flange diameter Ø 50.8 mm
- Shaft Type Solid shaft
- Protection class shaft IP67
- Resolution, incremental 2500 ppr
- Flange type Synchro flange
- Ambient temperature -40…+85 °C
- Housing material Die-cast zinc
- Electrical connection Connector, M12 × 1
- Operating voltage 5…30 VDC
- Technology Optical
- Output type Incremental
- Output function Push-Pull 7272, with inverted signals
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI-10SA1Z2-2K2500-H1181 Description

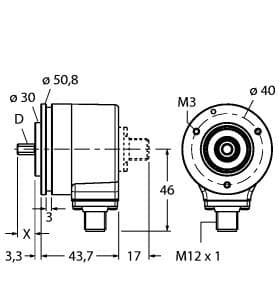

Turck RI-10SA1Z2-2K2500-H1181 is a compact incremental rotary encoder designed for 2" motor flange mounting. It operates within an ambient air temperature range of -40 to +85°C and features a solid shaft motor flange with optical sensing. This encoder is pre-equipped with a radial 8-pin M12 Eurofast QD male connector for connectivity. It falls under the Type RI-10 series and has dimensions including a 2" casing diameter, 3/8" shaft diameter, and 5/8" shaft length. With an IP67 degree of protection, it supports a supply voltage range of 5Vdc to 30Vdc and can handle a 300kHz pulse frequency. The encoder is constructed from die-cast metal housing, with a stainless steel shaft, disc table, and packing ring. It offers one digital output (push-pull; 7272 compatible; 5Vdc-30Vdc) and includes protection functions against short-circuit, bearing lock, magnetic fields, and reverse polarity. The maximum rotational speed is 6000rpm, with a moment of inertia of 1.8 x 10-6kg.m2, and a resolution of 2500 pulses per revolution. Its current consumption is 50mA with no load, and it can withstand a maximum radial load of 80 N and a maximum axial load of 40 N.
Related documents RI-10SA1Z2-2K2500-H1181 Specs
