RI-10S10S-2B50-12M23 Turck Encoders
Part#:RI-10S10S-2B50-12M23
Manufacturer:Turck
Alt. Part#:1545903
Product Lifecycle:Active
Get a quick Quote!

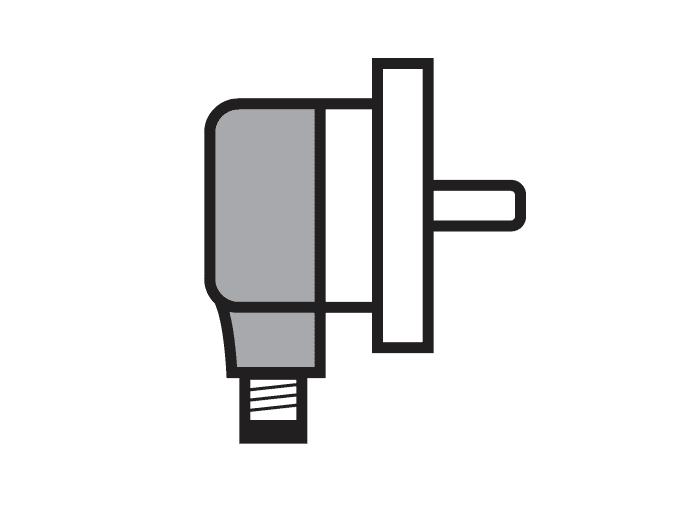

RI-10S10S-2B50-12M23 Incremental Shaft Encoder, Industrial Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI-10S10S-2B50-12M23 Turck price in the box on the right side or send a quick quote.
Product Details
- Protection class shaft IP67
- Protection class IP67
- Output function Push-Pull/HTL, with inverted signals
- Electrical connection Connector
- Ambient temperature -40…+85 °C
- Housing material Die-cast zinc
- Technology Optical
- Output type Incremental
- Encoder line Industrial-Line
- Flange diameter Ø 58 mm
- Operating voltage 10…30 VDC
- Shaft Type Solid shaft
- Resolution, incremental 50 ppr
- Flange type Synchro flange
- Shaft diameter D [mm] 10 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI-10S10S-2B50-12M23 Description
Turck RI-10S10S-2B50-12M23 is a compact incremental rotary encoder designed for 58mm motor flange mounting. It operates within an ambient air temperature range of -40 to +85°C and features a solid shaft motor flange with optical sensing. This encoder is pre-equipped with a radial 12-pin M23 Multifast male connector, falling under the Type RI-10 series. It has dimensions including a 2" casing diameter, a 10mm shaft diameter, and a 20mm shaft length. The encoder is protected to IP67 standards and requires a supply voltage of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. It supports a 300kHz pulse frequency and is constructed from die-cast metal housing, with a stainless steel shaft, disc table, and packing ring. The encoder features 1 x digital output (push-pull; 10Vdc-30Vdc), and includes protection functions against short-circuit, bearing lock, magnetic fields, and reverse polarity. It can handle a maximum rotational speed of 6000rpm, has a moment of inertia of 1.8 x 10-6kg.m2, and offers a resolution of 50ppr (pulses/revolution). The current consumption is 50mA with no load, and it can withstand a maximum radial load of 80 N and a maximum axial load of 40 N.
Related documents RI-10S10S-2B50-12M23 Specs
