REM-101S6S-9F32B-H1151 Turck Industrial Automation Components

REM-101S6S-9F32B-H1151 on Powermatic Associates
Turck

Part#:REM-101S6S-9F32B-H1151

Manufacturer:Turck

Category:Industrial Automation Components

Alt. Part#:100023543

Product Lifecycle:Active

Get a quick Quote!

REM-101S6S-9F32B-H1151 Turck - REM-101S6S-9F32B-H1151 Absolute Rotary Encoder - Multiturn, Industrial Line

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the REM-101S6S-9F32B-H1151 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    200 g
  • Country Of Origin
    DEU
  • HTS Code
    9032894000
  • Weight
    200 grams
  • Operating Voltage
    10 volts, 30 volts
  • Ambient Temperature
    -40 degrees celsius, 80 degrees celsius
  • Country of Origin
    Germany
  • Protection class
    IP67
  • Protection class shaft
    IP67
  • Ambient temperature
    -40…+80 °C
  • Housing material
    Die-cast zinc
  • Electrical connection
    Connector, M12 × 1
  • Communication protocol
    SAE J1939
  • Operating voltage
    10…30 VDC
  • Flange type
    Synchro flange
  • Flange diameter
    Ø  36  mm
  • Encoder line
    Industrial-Line
  • Shaft diameter D [mm]
    6  mm
  • Output type
    Absolute multiturn
  • Shaft Type
    Solid shaft
  • Technology
    Magnetic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

REM-101S6S-9F32B-H1151 Description

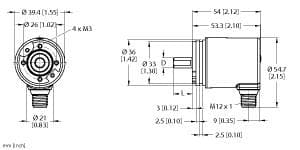

Absolute Rotary Encoder - Multiturn, Industrial Line, Synchro flange, Ø 36 mm, Solid shaft, Ø 6 mm × 12.5 mm, Magnetic measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+80 °C, Max. 4000 rpm (continuous operation 2000 rpm), 10-30 VDC, SAE J1939, M12 connection, 5-pin, Singleturn resolution 14 bit scalable, default 14 bit, Multiturn resolution scalable up to 29 bit over total resolution, default 18 bit, Total resolution 32 bit scalable, default: 32 bit

Related documents REM-101S6S-9F32B-H1151 Specs

REM-101S6S-9F32B-H1151 edb_100023543_eng_us.pdf

Manufacturer warranty

$690.50

Request a quote, and we will send availability within minutes.

Select Qty:

$690.50

$690.50 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
