REI-E-114I10E-2B5000-H1181 Turck Encoders

Name: REI-E-114I10E-2B5000-H1181
Brand: Turck

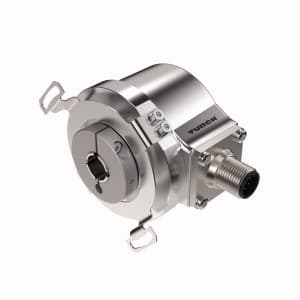

Turck REI-E-114I10E-2B5000-H1181 REI-E-114I10E-2B5000-H1181 Incremental Encoder, Efficiency Line

Part#:REI-E-114I10E-2B5000-H1181

Manufacturer:Turck

Alt. Part#:100011770

Product Lifecycle:Active

Get a quick Quote!

REI-E-114I10E-2B5000-H1181 Incremental Encoder, Efficiency Line

About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the REI-E-114I10E-2B5000-H1181 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
400 g
Ambient temperature
-20…+70 °C
Housing material
Die-cast zinc
Output function
Push-Pull/HTL, with inverted signals
Protection class shaft
IP64
Protection class
IP64
Electrical connection
Connector, M12 × 1
Operating voltage
10…30 VDC
Output type
Incremental

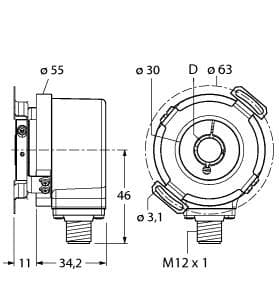

Flange diameter
Ø 63 mm
Resolution, incremental
5000 ppr
Flange type
Flange with stator coupling
Shaft diameter D [mm]
10 mm
Shaft Type
Hollow shaft
Encoder line
Efficiency-Line
Technology
Optical

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

REI-E-114I10E-2B5000-H1181 Description

Turck - REI-E-114I10E-2B5000-H1181
