REI-E-113T8S-2B360-H1181 Turck Industrial Automation Components

Name: REI-E-113T8S-2B360-H1181
Brand: Turck

REI-E-113T8S-2B360-H1181 on Powermatic Associates

Part#:REI-E-113T8S-2B360-H1181

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Get a quick Quote!

REI-E-113T8S-2B360-H1181 Turck - REI-E-113T8S-2B360-H1181 Incremental Encoder, Efficiency Line

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the REI-E-113T8S-2B360-H1181 Turck price in the box on the right side or send a quick quote.

Product Details

Ambient Temperature
-20 degrees celsius, 70 degrees celsius
Operating Voltage
10 volts, 30 volts
Weight
400 grams
Country of Origin
India
Electrical connection
Connector, M12 × 1
Output function
Push-Pull/HTL, with inverted signals
Ambient temperature
-20…+70 °C
Housing material
Die-cast zinc
Protection class
IP64
Protection class shaft
IP64
Shaft diameter D [mm]
8 mm
Encoder line
Efficiency-Line
Flange diameter
Ø 58 mm
Flange type
Synchro flange
Operating voltage
10…30 VDC
Resolution, incremental
360 ppr
Output type
Incremental
Technology
Optical
Shaft Type
Solid shaft

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

REI-E-113T8S-2B360-H1181 Description

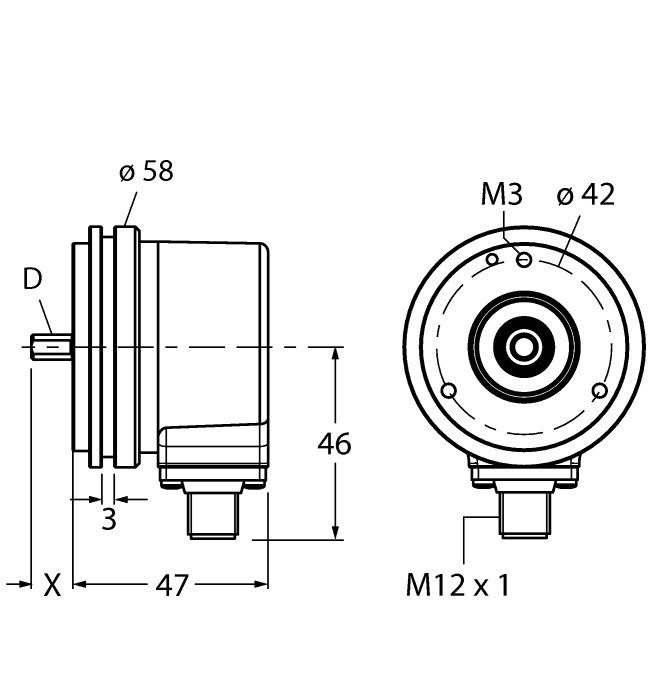

Incremental Encoder, Efficiency Line, Resolution, incremental 360 ppr, Synchro flange, Ø 58 mm, Solid shaft, Ø 8 mm × 15 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4500 rpm (continuous operation 3000 rpm), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 360 pulses per revolution
