PT060R-11-LI3-H1131 Turck Pressure Sensors
Part#:PT060R-11-LI3-H1131
Manufacturer:Turck
Alt. Part#:6831442
Product Lifecycle:Active
Get a quick Quote!
PT060R-11-LI3-H1131 Pressure Transmitter, With Current Output (2-Wire)
About the manufacturer: Turck is one of the manufacturers that offers Pressure Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the PT060R-11-LI3-H1131 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 124 g
- Protection class IP67
- Ambient temperature -40…+85 °C
- Housing material Stainless-steel/Plastic, 1.4305 (AISI 303)
- Medium temperature -40…+125 °C
- Pressure transducer material Ceramics Al
2 O3 - Process connection G 1/4'' female thread
- Pressure type Relative pressure
- Design Without display
- Electrical connection Connector, M12 × 1
- Current output 4…20 mA
- Electrical output Current output (2-wire)
- Operating voltage 8…33 VDC
- Relative pressure psi 0…870.23 psi rel.
- Relative pressure bar 0…60 bar rel.
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
PT060R-11-LI3-H1131 Description

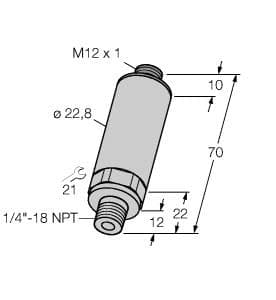

Turck PT060R-11-LI3-H1131 is a sensor designed for measuring pressure, specifically functioning as an instrumentation relative pressure sensor/transmitter within the PT series - bar scale. It operates in ambient air temperatures ranging from -40°C to +85°C and can measure fluid medium temperatures from -40°C to +125°C. This sensor has a cylindrical body with a diameter of 22.8mm and is constructed from 1.4305 (303) stainless steel and PBT housing, with the wetted parts and pressure connection also made of 1.4305 (303) stainless steel, and features a ceramics Al2O3 pressure transducer. It is designed to connect via a pre-equipped 3-pin M12 Eurofast QD male connector and a G1/4" (1/4" BSPP) threaded female process port. The PT060R-11-LI3-H1131 operates with a supply voltage range of 11.4-33Vdc (12Vdc / 24Vdc nom.), has a pressure range of 0 to +60bar (0 to +870psig), and offers protection functions against short-circuit (pulsed) and reverse polarity. It provides an analog output of 0-10Vdc, has a response time of 2ms / 0.002 s, and consumes 20mA of current. The degree of protection provided by the sensor is IP67, ensuring its operation in various environmental conditions.
Related documents PT060R-11-LI3-H1131 Specs
