PS510-400-04-2UPN8-H1141 Turck Pressure Sensors

Name: PS510-400-04-2UPN8-H1141
Brand: Turck

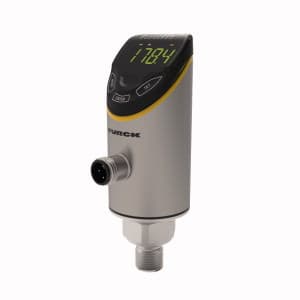

Turck PS510-400-04-2UPN8-H1141 PS510-400-04-2UPN8-H1141 Pressure Sensor, Relative Pressure: 0…400 Bar

Part#:PS510-400-04-2UPN8-H1141

Manufacturer:Turck

Alt. Part#:100001742

Product Lifecycle:Active

Get a quick Quote!

PS510-400-04-2UPN8-H1141 Pressure Sensor, Relative Pressure: 0…400 Bar

About the manufacturer: Turck is one of the manufacturers that offers Pressure Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PS510-400-04-2UPN8-H1141 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
290 g
Protection class
IP6K6K / 6K7 / 6K9K
Process connection
G 1/4” male thread
Pressure type
Relative pressure
Medium temperature
-30…+80 °C
Housing material
Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV
Relative pressure bar
0…400 bar rel.
Relative pressure psi
0…5801.51 psi rel.
Ambient temperature
-40…+80 °C
Electrical output
2 × switching output
Communication protocol
IO-Link
Electrical connection
Connector, M12 × 1
Operating voltage
18…33 VDC
Design
With display

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PS510-400-04-2UPN8-H1141 Description

Turck PS510-400-04-2UPN8-H1141 is a sensor designed for measuring pressure with a main function as an instrumentation programmable relative pressure sensor/switch. It operates within an ambient air temperature range of -40°C to +80°C and features a pre-equipped 4-pin M12 Eurofast QD male connector and a 7/16"-20 UNF threaded male process port (SAE-ORB). This part belongs to the PS+ series and offers a degree of protection of IP66. It requires a supply voltage of 18-30Vdc (24Vdc nom.) and has a cylindrical body shape. The sensor's maximum switching frequency is 300Hz, and it is constructed with a 1.4404 (316L) stainless steel housing and measuring cell. It can measure pressure ranges from 0 to +400bar and supports operating modes of NO (Normally Open) or NC (Normally Closed), which are programmable. Additionally, it includes 2 x digital outputs (18-30Vdc; NPN/PNP) and offers measurement accuracy with setpoint hysteresis ≥0.5% analog / setpoint accuracy +/-0.5% FS (of full scale) or +/-0.25% FS (of full scale).
