PKG 3M-8/S90 Turck Cordsets

Name: PKG 3M-8/S90
Brand: Turck
Price: 41.2 USD
Availability: InStock

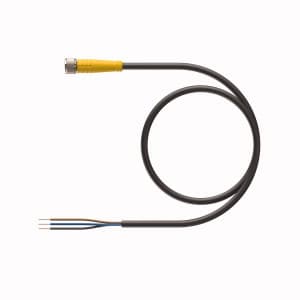

Turck PKG 3M-8/S90 PKG 3M-8/S90 Actuator and Sensor Cordset, Connection Cable

Part#:PKG 3M-8/S90

Manufacturer:Turck

Alt. Part#:U2515-8

Product Lifecycle:Active

In-stock parts: 5

Sep 28, 2024

PKG 3M-8/S90 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PKG 3M-8/S90 Turck price in the box on the right side or send a quick quote.

Product Details

Cable Jacket Color
Black
Cable length (L)
8.0 m
Approvals
UL Listed, CSA, CE, RoHS
Cable Jacket Material
TPU
Current
4 A
Voltage
125 V
Connector A
M8 × 1
Application
Actuator and Sensor
Material coupling/housing A
Brass
Connector A - Number of Pins
3
Connector A - Style
Straight, Female
Number of Conductors
3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKG 3M-8/S90 Description

Turck PKG 3M-8/S90 is a single-ended mating cable/cordset designed for use in C-Track and drag chain applications. This cable features an 8m length with a 4.4mm outer diameter TPE jacket, suitable for environments requiring a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P. It is equipped with a 3-pin M8 picofast female connector with an M8x1 threaded coupling nut and bare end flying leads, facilitating a connection type within the M8 picofast to bare leads sub-range. The cable supports a rated current of 4A and a rated voltage of 125Vac across its 3-wire, 3 x #24AWG cross-section. The nickel-plated brass coupling nut and TPU jacket, along with a black sheath, complete the construction of this part.
