PKG 3M-4-PSG 3M

Turck

Product Lifecycle: Active

Alt. Part#: U2515-75

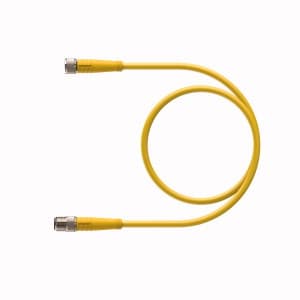

PKG 3M-4-PSG 3M Actuator and Sensor Cordset, Extension Cable

PKG 3M-4-PSG 3M

PKG 3M-4-PSG 3M Actuator and Sensor Cordset, Extension Cable

edb_U2515-75_eng_us.pdf

Product details

edb_U2515-75_eng_us.pdf
  • Weight116 g
  • Cable length (L)4.0  m
  • Cable Jacket ColorYellow
  • ApprovalsUL Listed, CSA, CE, RoHS
  • Cable Jacket MaterialPVC
  • Current4 A
  • Voltage125 V
  • Connector AM8 × 1
  • Connector A - Number of Pins3
  • Connector A - StyleStraight, Female
  • Material coupling/housing BBrass
  • Connector B - StyleStraight, Male
  • Connector BM8 × 1
  • Material coupling/housing ABrass
  • ApplicationActuator and Sensor
  • Number of Conductors3
This part can ship within 24 hours
Support Agent Icon

$31.50

Stock:

94

Select Qty:

$31.50

$31.50 each

This part can ship within 24h!

Fast worldwide Shipping and Delivery

Shipping cost will be calculated during checkout

Payments methods

Secure Payment Processing
with money back guarantee

1 year warranty on all parts

Responsive Customer Support
with personalized assistance

Need more details?

Feel free to chat with us.

Relevant products

This item can ship within 24h!

PKG 4M-0.2-PSG 3/S760/S771

PKG 4M-0.2-PSG 3/S760/S771

Turck PKG 4M-0.2-PSG 3/S760/S771 is a double-ended cable/cordset designed for automation applications, featuring a 4.4mm cable sheath outer diameter and a length of 20cm. It is equipped with a 4-pin M8 picofast female connector and a 4-pin M8 picofast male connector, both featuring a straight configuration. The connectors are designed with a nickel-plated brass coupling nut and a POM locking sleeve, ensuring secure connections. The cable is protected by a PVC jacket in yellow, offering a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, making it suitable for various environmental conditions. It operates with a rated current of 2A and a rated voltage of 125Vac. This cordset includes a 4-wire configuration with a cross-section of 4 x #26AWG, catering to a wide range of automation needs.

TurckSTOCK: 198

This item can ship within 24h!

PKGV 4M-0.2-PSGV 4M/CS13070

PKGV 4M-0.2-PSGV 4M/CS13070

Turck PKGV 4M-0.2-PSGV 4M/CS13070 is a double-ended cable or cordset designed for automation applications, featuring a 4.2mm cable sheath outer diameter and a length of 20cm. It is equipped with a 4-pin M8 picofast female connector and a 4-pin M8 picofast male connector, both with M8x1 threaded coupling nuts, facilitating a secure connection. This part operates with a rated current of 2A and a rated voltage of 125Vac. It is constructed with a PVC jacket and stainless steel coupling nuts, ensuring durability, and comes in black with moulded plugs. The cable is designed for a 4-wire configuration, utilizing a cross-section of 4 x #26AWG. It offers a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, making it suitable for various environmental conditions.

TurckSTOCK: 162

This item can ship within 24h!

PKGV 4M-1.2-PSG 3/S760/S771/S1579

PKGV 4M-1.2-PSG 3/S760/S771/S1579

Turck PKGV 4M-1.2-PSG 3/S760/S771/S1579 is a double-ended cable or cordset featuring a 4.4mm cable sheath outer diameter and a rated current of 2A. It is equipped with a 4-pin M8 picofast female connector with an M8x1 threaded coupling nut on one end and a right-angled 4-pin M12 eurofast male connector with a T-barb fitting on the other, belonging to the sub-range of M8 picofast female straight to M12 eurofast male 90° angled connectors. This part offers a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P. The connectors are made with stainless steel coupling nuts, and the cable is protected by a PVC jacket in yellow. The cable length is 1 meter (approximately 3 feet), with a rated voltage of 125Vac and a cross-section of 4 x #26AWG.

TurckSTOCK: 140
