NI8-S18-AN7X Turck Inductive Sensors

Turck NI8-S18-AN7X NI8-S18-AN7X Inductive Sensor
Turck

Part#:NI8-S18-AN7X

Manufacturer:Turck

Alt. Part#:1714100

Product Lifecycle:Active

Get a quick Quote!

NI8-S18-AN7X Inductive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the NI8-S18-AN7X Turck price in the box on the right side or send a quick quote.

Product Details

  • Ambient temperature
    -25…+70 °C
  • Protection class
    IP67
  • Design
    Threaded barrel
  • Electrical connection
    Cable
  • Cable length (L)
    2.0  m
  • Output function
    NO contact, NPN
  • Housing material
    Plastic, PA12-GF30
  • Mounting
    Non-flush
  • Operating voltage
    10…30 VDC

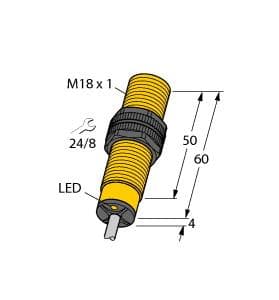

  • Construction size
    M18 x 1
  • Rated switching distance
    8 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

NI8-S18-AN7X Description

Turck NI8-S18-AN7X is an inductive proximity sensor designed for detecting metal objects within an 8mm sensing distance. It operates with a supply voltage range of 10-30Vdc, including nominal 12Vdc and 24Vdc, and features a maximum switching frequency of 500Hz. This sensor is equipped with a pre-wired 2m cable with bare end flying leads for connection. It has a digital output (10-30Vdc; NPN; TTL-compatible) and supports a control circuit rated current of 150mA / 0.15 A. The NI8-S18-AN7X, part of the NI...-S18 series, comes in an M18 partially threaded barrel shape made from PA12-GF30, a glass fiber reinforced Polyamide, ensuring durability. It operates in a NO (Normally Open) mode and can function within an ambient air temperature range of -25°C to +70°C. This model is designed with an IP67 degree of protection, making it suitable for various industrial applications.

Related documents NI8-S18-AN7X Specs

NI8-S18-AN7X edb_1714100_eng_us.pdf

Manufacturer warranty

$118.30

Request a quote, and we will send availability within minutes.
