NI14-MT18E-AP6X-H1141/S1589 Turck Inductive Sensors

NI14-MT18E-AP6X-H1141/S1589 on Powermatic Associates
Turck

Part#:NI14-MT18E-AP6X-H1141/S1589

Alt. Part#:4611497

Manufacturer:Turck

Category:Inductive Sensors

Product Lifecycle:Active

Product description

NI14-MT18E-AP6X-H1141/S1589 Turck - NI14-MT18E-AP6X-H1141/S1589 Inductive Sensor, With Weldguard® coating

Product Details

  • RoHS
    Yes
  • Country Of Origin
    USA
  • HTS Code
    8536507000
  • Operating Voltage
    10 volts, 30 volts
  • Ambient Temperature
    -25 degrees celsius, 70 degrees celsius
  • Protection class
    IP67
  • Special features
    weldguard®
  • Ambient temperature
    -25…+70 °C
  • Housing material
    Metal, CuZn, PTFE-coated
  • Electrical connection
    Connector, M12 × 1
  • Mounting
    Non-flush
  • Output function
    NO contact, PNP
  • Design
    Threaded barrel
  • Rated switching distance
    14 mm
  • Operating voltage
    10…30 VDC
  • Construction size
    M18 x 1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NI14-MT18E-AP6X-H1141/S1589 on Powermatic Associates is $179.00. Order now.

About the product

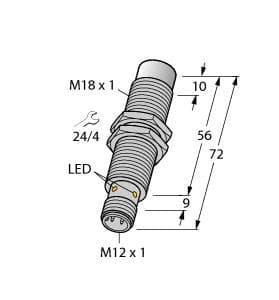

Inductive Sensor, With Weldguard® coating, Rated switching distance 14 mm, Non-flush, Threaded barrel, M18 x 1, Long version, Brass, PTFE-coated, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector

NI14-MT18E-AP6X-H1141/S1589 Related Documents

edb_4611497_eng_us.pdf

This item can ship within 0 day!
