NI14-M18-RP6X-H1141 Turck Inductive Sensors

NI14-M18-RP6X-H1141 on Powermatic Associates

Turck

Part#:NI14-M18-RP6X-H1141

Manufacturer:Turck

Alt. Part#:4611484

Product Lifecycle:Active

Get a quick Quote!

NI14-M18-RP6X-H1141 Inductive Sensor, With Increased Switching Distance

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the NI14-M18-RP6X-H1141 Turck price in the box on the right side or send a quick quote.

Product Details

RoHS
Yes
Country Of Origin
USA
HTS Code
8536507000
Operating Voltage
10 volts, 30 volts
Ambient Temperature
-25 degrees celsius, 70 degrees celsius
Protection class
IP67
Special features
Sn +
Construction size
M18 x 1
Housing material
Metal, CuZn, Chrome-plated
Design
Threaded barrel
Ambient temperature
-25…+70 °C
Rated switching distance
14 mm
Electrical connection
Connector, M12 × 1
Output function
NC contact, PNP
Operating voltage
10…30 VDC
Mounting
Non-flush

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

NI14-M18-RP6X-H1141 Description

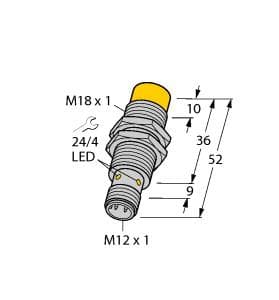

Inductive Sensor, With Increased Switching Distance, Rated switching distance 14 mm, Non-flush, Threaded barrel, M18 x 1, Chrome-plated brass, Large sensing range, DC 3-wire, 10…30 VDC, NC contact, PNP output, M12 x 1 male connector

Related documents NI14-M18-RP6X-H1141 Specs

NI14-M18-RP6X-H1141 edb_4611484_eng_us.pdf

Manufacturer warranty

$134.90
