NI12U-S18-AP6X-H1141 Turck Inductive Sensors

NI12U-S18-AP6X-H1141 on Powermatic Associates
Turck

Part#:NI12U-S18-AP6X-H1141

Manufacturer:Turck

Alt. Part#:1645600

Product Lifecycle:Active

Get a quick Quote!

NI12U-S18-AP6X-H1141 Inductive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the NI12U-S18-AP6X-H1141 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    23 g
  • Country Of Origin
    DEU
  • HTS Code
    8536507000
  • Weight
    23 grams
  • Operating Voltage
    10 volts, 30 volts
  • Country of Origin
    Germany
  • Ambient Temperature
    -30 degrees celsius, 85 degrees celsius
  • Special features
    uprox+, Factor 1, Resistant to magnetic fields
  • Protection class
    IP68
  • Output function
    NO contact, PNP
  • Design
    Threaded barrel
  • Ambient temperature
    -30…+85 °C
  • Electrical connection
    Connector, M12 × 1
  • Housing material
    Plastic, PBT-GF30
  • Construction size
    M18 x 1
  • Operating voltage
    10…30 VDC
  • Mounting
    Non-flush
  • Rated switching distance
    12 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

NI12U-S18-AP6X-H1141 Description

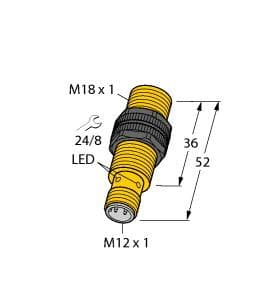

Inductive Sensor, Rated switching distance 12 mm, Non-flush, Threaded barrel, M18 x 1, Plastic, PBT-GF30, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, Auto-compensation protects against pre-damping, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector

Related documents NI12U-S18-AP6X-H1141 Specs

NI12U-S18-AP6X-H1141 English-1630965083191.pdf

Manufacturer warranty

$148.20

Request a quote, and we will send availability within minutes.

Select Qty:

$148.20

$148.20 each

Average response time: 11 minutes
