NI10-G18-AN6X 7M Turck Inductive Sensors

NI10-G18-AN6X 7M on Powermatic Associates
Turck

Part#:NI10-G18-AN6X 7M

Manufacturer:Turck

Alt. Part#:4641797

Product Lifecycle:Active

Get a quick Quote!

NI10-G18-AN6X 7M Inductive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the NI10-G18-AN6X 7M Turck price in the box on the right side or send a quick quote.

Product Details

  • Country Of Origin
    USA
  • HTS Code
    8536507000
  • Operating Voltage
    10 volts, 30 volts
  • Ambient Temperature
    -25 degrees celsius, 70 degrees celsius
  • Protection class
    IP67
  • Ambient temperature
    -25…+70 °C
  • Construction size
    M18 x 1
  • Housing material
    Metal, CuZn, Chrome-plated
  • Output function
    NO contact, NPN
  • Mounting
    Non-flush
  • Cable length (L)
    7.0  m
  • Electrical connection
    Cable
  • Rated switching distance
    10 mm
  • Operating voltage
    10…30 VDC
  • Design
    Threaded barrel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

NI10-G18-AN6X 7M Description

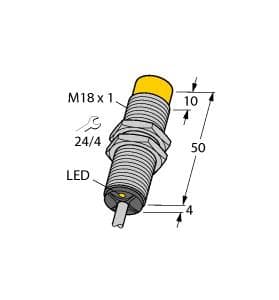

Inductive Sensor, Rated switching distance 10 mm, Cable length (L) 7 m, Non-flush, Threaded barrel, M18 x 1, Chrome-plated brass, DC 3-wire, 10…30 VDC, NO contact, NPN output, Cable connection

Related documents NI10-G18-AN6X 7M Specs

NI10-G18-AN6X 7M edb_4641797_eng_us.pdf

Manufacturer warranty

$124.30

Request a quote, and we will send availability within minutes.

Select Qty:

$124.30

$124.30 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
