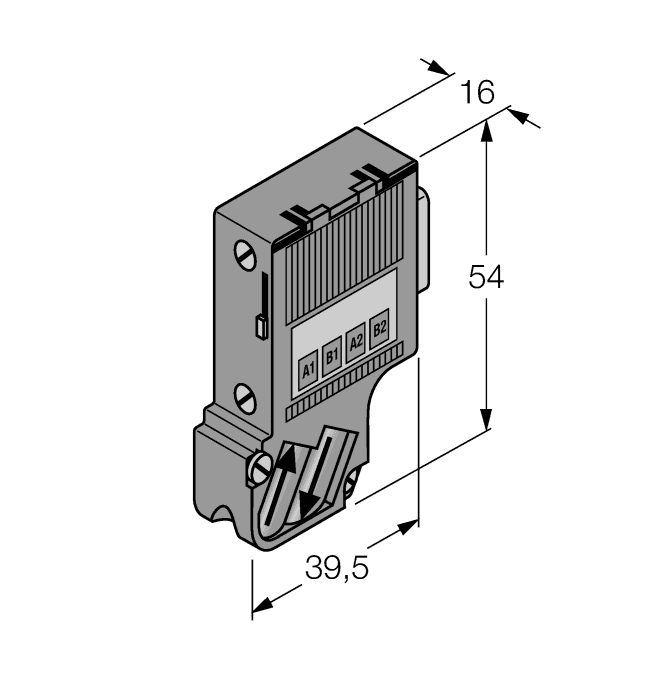

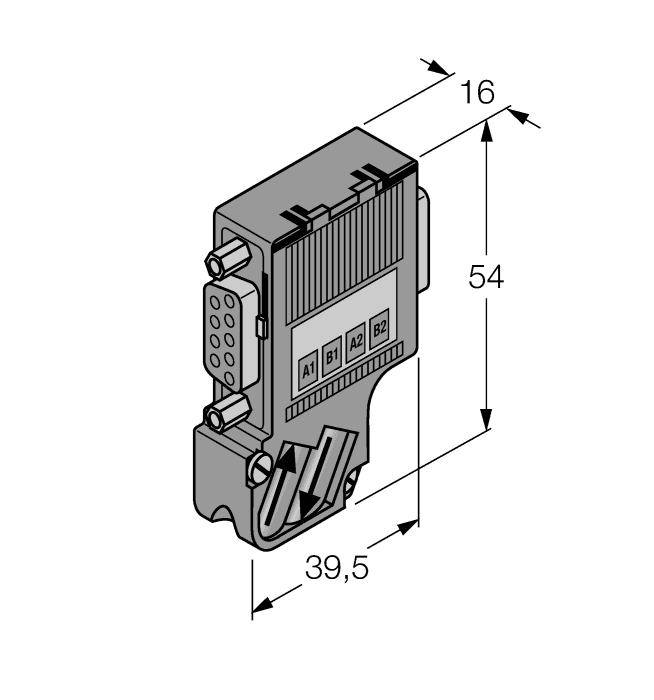

D9T-RS485PG /6ES7972-0BB61-0XA0 Turck Sensor Accessories

GV2P14

Schneider Electric GV2P14 is a Motor Protection Circuit Breaker (MPCB) within the GV2P sub-range, designed for thermal-magnetic motor protection and manual motor starting. It features 3 poles and provides protection functions against short-circuit and thermal overload. The rated current range is 6 - 10 A, with a rated insulation voltage (Ui) of 690 V. This MPCB is designed for DIN rail or mounting plate installation, has a net width of 45 mm, and is operated via a rotary knob. Protection settings for short-circuit pickup current are fixed at 138A. The rated impulse voltage (Uimp) is 6 kV, and it supports rated active powers of 3 kW at 400/415Vac, 5 kW at 500Vac, and 5.5 kW at 690Vac. The trip current rating is 10 AT, with a frame current rating of 32 AF. It boasts a mechanical durability of 100,000 operations at no load and an electrical durability of 100,000 operations at 415Vac in AC-3 condition. Connection is facilitated through screw-clamp terminals. The rated voltage for phase-to-phase is 690 V, with all three poles protected. The trip unit type is thermal-magnetic, supporting a minimum current of 6 A and a maximum current of 10 A, classified under utilisation category A AC-3.
