BIM-UNT-AP6X-0.3-PSG3S/S1153 Turck Magnetic Field Sensors

Name: BIM-UNT-AP6X-0.3-PSG3S/S1153
Brand: Turck

Turck BIM-UNT-AP6X-0.3-PSG3S/S1153 BIM-UNT-AP6X-0.3-PSG3S/S1153 Magnetic Field Sensor, For Pneumatic Cylinders

Part#:BIM-UNT-AP6X-0.3-PSG3S/S1153

Manufacturer:Turck

Alt. Part#:4685732

Product Lifecycle:Active

Get a quick Quote!

BIM-UNT-AP6X-0.3-PSG3S/S1153 Magnetic Field Sensor, For Pneumatic Cylinders

About the manufacturer: Turck is one of the manufacturers that offers Magnetic Field Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BIM-UNT-AP6X-0.3-PSG3S/S1153 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
13 g
Electrical connection
Cable with connector, Ø 8 mm
Protection class
IP68
Ambient temperature
-25…+70 °C
Cable length (L)
0.30 m
Housing material
Plastic, PP
Design
Rectangular
Output function
NO contact, PNP

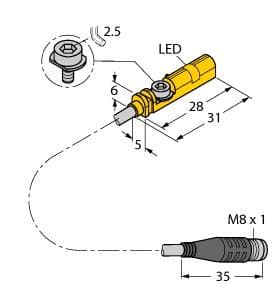

Construction size
28 x 5 x 6 mm, UNT
Cylindrical design
Dovetail groove cylinder, T-groove cylinder, Round cylinder, Tie-rod cylinder
Operating voltage
10…30 VDC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BIM-UNT-AP6X-0.3-PSG3S/S1153 Description

Turck BIM-UNT-AP6X-0.3-PSG3S/S1153 is a magnetic field cylinder position sensor/switch belonging to the BIM-UNT series. This sensor features a common INT screw embeddable Permaprox cylinder design, operating with a supply voltage range of 10-30Vdc, including nominal 12Vdc and 24Vdc. It is constructed with a PP (Polypropylene) housing and sensing face, along with a PUR (Polyurethane) cable jacket. The sensor is connected via a pre-wired 30cm / 12" pigtail PUR cable that terminates with a 3-pin M8 Picofast fixed coupling nut male connector. Its T-groove body shape is designed for T-slot mounting, offering an IP68 degree of protection against ingress. The sensor operates at a maximum switching frequency of 1kHz / 1000Hz and can function within an ambient air temperature range of -25°C to +70°C. It features 1 x digital output (10-30Vdc; PNP; 150mA max.) and has a no-load current consumption of 15mA. Protection functions include short-circuit (pulsed), overload, and reverse polarity, with an operating mode of NO (Normally Open).
