BI8U-Q08-AP6X2-0.2-RS4T/S1589 Turck Inductive Sensors
Part#:BI8U-Q08-AP6X2-0.2-RS4T/S1589
Manufacturer:Turck
Category:Inductive Sensors
Alt. Part#:1662083
Product Lifecycle:Active
In-stock parts: 78
Mar 17, 2024

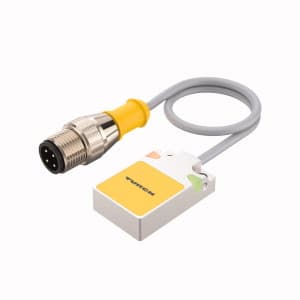

BI8U-Q08-AP6X2-0.2-RS4T/S1589 Turck - BI8U-Q08-AP6X2-0.2-RS4T/S1589 Inductive Sensor, With WeldGuard™ Coating and Increased Switching Distance
About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the BI8U-Q08-AP6X2-0.2-RS4T/S1589 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 27 g
- RoHS Yes
- Country Of Origin USA
- HTS Code 8536507000
- Weight 27.215 grams
- Country of Origin USA
- Operating Voltage 10 volts, 30 volts
- Ambient Temperature -25 degrees celsius, 70 degrees celsius
- Ambient temperature -25…+70 °C
- Special features uprox+, Factor 1, Resistant to magnetic fields
- Protection class IP68
- Electrical connection Cable with connector, M12 × 1
- Housing material Metal, Zamak, Nickel Plated
- Cable length (L) 0.20 m
- Design Rectangular
- Output function NO contact, PNP
- Mounting Flush
- Operating voltage 10…30 VDC
- Rated switching distance 8 mm
- Construction size 32 x 20 x 8 mm, Q08
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
BI8U-Q08-AP6X2-0.2-RS4T/S1589 Description
Inductive Sensor, With WeldGuard™ Coating and Increased Switching Distance, Rated switching distance 8 mm, Cable length (L) 0.2 m, Flush, Rectangular, height 8 mm, Active face on top, Metal, Zamak, nickel-plated, Factor 1 for all metals, Increased switching distance, Protection class IP68, Resistant to magnetic fields, Mountable on metal, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end M12 x 1
Related documents BI8U-Q08-AP6X2-0.2-RS4T/S1589 Specs
This item can ship in 3-5 days!
Manufacturer warranty
$148.40
Stock:
78
Select Qty:
$148.40
$148.40 each
