BI5U-Q12-AP6X2 Turck Inductive Sensors
Part#:BI5U-Q12-AP6X2
Manufacturer:Turck
Alt. Part#:1635522
Product Lifecycle:Active
Get a quick Quote!

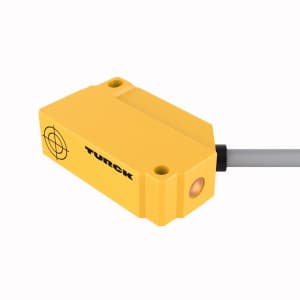

BI5U-Q12-AP6X2 Inductive Sensor, With Extended Switching Distance
About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the BI5U-Q12-AP6X2 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 69 g
- Country Of Origin DEU
- HTS Code 8536507000
- Protection class IP68
- Special features uprox+, Factor 1, Resistant to magnetic fields
- Output function NO contact, PNP
- Mounting Flush
- Ambient temperature -25…+70 °C
- Rated switching distance 5 mm
- Electrical connection Cable
- Design Rectangular
- Construction size 40 x 26 x 12 mm, Q12
- Housing material Plastic, PA12-GF30
- Cable length (L) 2.0 m
- Operating voltage 10…30 VDC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
BI5U-Q12-AP6X2 Description
Turck BI5U-Q12-AP6X2 is an inductive proximity sensor belonging to the BI...-Q12 series, designed for embeddable applications. It operates with a supply voltage range of 10-30Vdc, including nominal 12Vdc and 24Vdc, and features a housing and sensing face made of glass fiber reinforced Polyamide (PA12-GF30), with a Polyurethane (PUR) cable jacket. This sensor is equipped with a pre-wired 2m (6.5ft) PUR cable that terminates with bare end flying leads. It has a 12mm thick rectangular body and offers an IP68 degree of protection. The maximum switching frequency is 1kHz (1000Hz), and it can operate within an ambient air temperature range of -25°C to +70°C. The response time is 8ms (0.008s), and it includes one digital output (10-30Vdc; PNP; 200mA max.) with a no-load current consumption of 15mA. The sensing distance is 5mm. Protection functions include short-circuit (pulsed), overload, and reverse polarity protection. The control circuit is rated at 200mA (0.2A), and the operating mode is Normally Open (NO).
Related documents BI5U-Q12-AP6X2 Specs
Manufacturer warranty
$125.50
Request a quote, and we will send availability within minutes.
Select Qty:
$125.50
$125.50 each
