BI2-Q5.5-AP6X-0.3-RS4T/S34 Turck Inductive Sensors

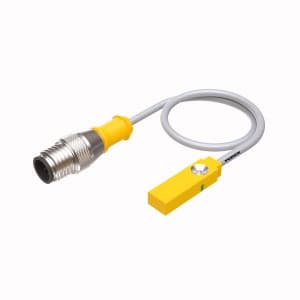

Turck BI2-Q5.5-AP6X-0.3-RS4T/S34 BI2-Q5.5-AP6X-0.3-RS4T/S34 Inductive Sensor, Resistant to Magnetic Fields
Turck

Part#:BI2-Q5.5-AP6X-0.3-RS4T/S34

Manufacturer:Turck

Alt. Part#:16130802

Product Lifecycle:Active

Get a quick Quote!

BI2-Q5.5-AP6X-0.3-RS4T/S34 Inductive Sensor, Resistant to Magnetic Fields

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI2-Q5.5-AP6X-0.3-RS4T/S34 Turck price in the box on the right side or send a quick quote.

Product Details

  • Electrical connection
    Cable with connector, M12 × 1

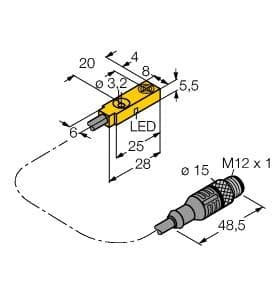

  • Construction size
    28 x 8 x 5.5 mm, Q5.5
  • Housing material
    Plastic, PP-GF20
  • Design
    Rectangular
  • Operating voltage
    10…30 VDC
  • Rated switching distance
    2 mm
  • Protection class
    IP67
  • Special features
    Resistant to magnetic fields
  • Output function
    NO contact, PNP
  • Cable length (L)
    0.30  m
  • Ambient temperature
    -25…+70 °C
  • Mounting
    Flush

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BI2-Q5.5-AP6X-0.3-RS4T/S34 Description

Turck BI2-Q5.5-AP6X-0.3-RS4T/S34 is an inductive proximity sensor within the BI...-Q5.5 series, designed for embeddable applications. It operates on a supply voltage of 10-30Vdc, with nominal values of 12Vdc and 24Vdc. The sensor features a PP (Polypropylene) housing, a PP-GF20 (glass fiber reinforced Polypropylene) sensing face, and a TPU (Thermoplastic Polyurethane) cable jacket. It comes pre-wired with a 30cm / 12" pigtail TPU-jacketed cable that terminates with a 4-pin M12 Eurofast QD male connector. The sensor has a 5.5mm thick rectangular body and offers an IP67 degree of protection. It supports a maximum switching frequency of 1kHz / 1000Hz and can operate in ambient air temperatures ranging from -25°C to +70°C. The sensor provides 1 x digital output (10-30Vdc; PNP; 150mA max.), with a no-load current consumption of 15mA and a sensing distance of 2mm. It includes protection functions against short-circuit (pulsed), overload, and reverse polarity, and operates in a Normally Open (NO) mode.

Related documents BI2-Q5.5-AP6X-0.3-RS4T/S34 Specs

BI2-Q5.5-AP6X-0.3-RS4T/S34 English.pdf

Manufacturer warranty

$134.00

Request a quote, and we will send availability within minutes.
