BI2-G12-AP6X-0.5-RS4T Turck Inductive Sensors

Turck BI2-G12-AP6X-0.5-RS4T BI2-G12-AP6X-0.5-RS4T Inductive Sensor
Turck

Part#:BI2-G12-AP6X-0.5-RS4T

Manufacturer:Turck

Alt. Part#:4635480

Product Lifecycle:Active

Get a quick Quote!

BI2-G12-AP6X-0.5-RS4T Inductive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI2-G12-AP6X-0.5-RS4T Turck price in the box on the right side or send a quick quote.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BI2-G12-AP6X-0.5-RS4T Description

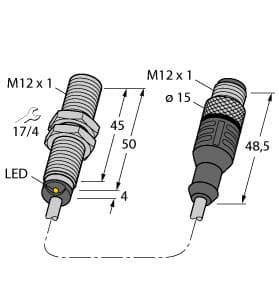

Turck BI2-G12-AP6X-0.5-RS4T is a sensor designed for proximity detection within the BI...-G12 series. This inductive proximity sensor/switch features an embeddable design with a supply voltage range of 10-30Vdc, including nominal 12Vdc and 24Vdc. It is constructed with a chrome-plated brass housing and is connected via a pre-wired 50cm / 20" pigtail cable that terminates with a 4-pin M12 Eurofast QD male connector. The sensor has an M12 fully threaded barrel shape and offers a degree of protection rated at IP67. It operates at a maximum switching frequency of 2kHz / 2000Hz and can function within an ambient air temperature range of -25°C to +70°C. The BI2-G12-AP6X-0.5-RS4T features 1 x digital output (10-30Vdc; PNP) with a sensing distance of 2mm and includes protection functions against short-circuit (pulsed), overload, and reverse polarity. Its thread size is M12, and it operates in a Normally Open (NO) mode.

Related documents BI2-G12-AP6X-0.5-RS4T Specs

BI2-G12-AP6X-0.5-RS4T edb_4635480_eng_us.pdf
