BI15-M30E-AN6X-H1141 Turck Inductive Sensors

BI15-M30E-AN6X-H1141 on Powermatic Associates
Turck

Part#:BI15-M30E-AN6X-H1141

Manufacturer:Turck

Alt. Part#:4618516

Product Lifecycle:Active

Get a quick Quote!

BI15-M30E-AN6X-H1141 Inductive Sensor, With Increased Switching Distance

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI15-M30E-AN6X-H1141 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    134 g
  • RoHS
    Yes
  • Country Of Origin
    DEU
  • HTS Code
    8536507000
  • Weight
    134 grams
  • Operating Voltage
    10 volts, 30 volts
  • Country of Origin
    Germany
  • Ambient Temperature
    -25 degrees celsius, 70 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BI15-M30E-AN6X-H1141 Description

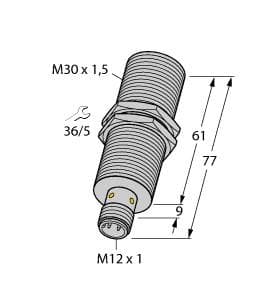

Inductive Sensor, With Increased Switching Distance, Rated switching distance 15 mm, Flush, Threaded barrel, M30 x 1.5, Long version, Chrome-plated brass, Large sensing range, DC 3-wire, 10…30 VDC, NO contact, NPN output, M12 x 1 male connector

Related documents BI15-M30E-AN6X-H1141 Specs

BI15-M30E-AN6X-H1141 edb_4618516_eng_us.pdf
