BI10-GT30-ADZ30X2-B1131/S34/S1589 Turck Inductive Sensors
Part#:BI10-GT30-ADZ30X2-B1131/S34/S1589
Manufacturer:Turck
Alt. Part#:4255280
Product Lifecycle:Active
Get a quick Quote!
BI10-GT30-ADZ30X2-B1131/S34/S1589 Inductive Sensor, Resistant to Magnetic Fields
About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the BI10-GT30-ADZ30X2-B1131/S34/S1589 Turck price in the box on the right side or send a quick quote.
Product Details
- Protection class IP67
- Special features Resistant to magnetic fields, PTFE-coated

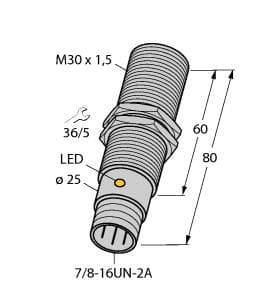

- Construction size M30 x 1.5
- Housing material Metal, CuZn, PTFE-coated
- Output function NO contact, 2-wire
- Electrical connection Connector, 7/8″
- Design Threaded barrel
- Rated switching distance 10 mm
- Ambient temperature -25…+70 °C
- Mounting Flush
- Operating voltage 20…250 VAC / 10…300 VDC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
BI10-GT30-ADZ30X2-B1131/S34/S1589 Description
Turck BI10-GT30-ADZ30X2-B1131/S34/S1589 is a sensor designed for proximity detection within the BI...-GT30 series. This inductive proximity sensor/switch features a Weldguard coated, embeddable design with a supply voltage range of 20-250Vac (including nominal values of 24Vac, 200Vac, 220Vac, 240Vac) and 10-300Vdc (including nominal values of 12Vdc, 24Vdc, 48Vdc, 120Vdc, 200Vdc, 250Vdc). It is constructed with a PTFE-coated brass housing and is connected via a pre-equipped 3-pin 7/8"-16 UN Minifast male connector. The sensor's shape is an M30 fully threaded barrel, offering a degree of protection rated at IP67. It operates with a maximum switching frequency of 20Hz and is suitable for network frequencies of 50-60 Hz. The ambient air temperature range for operation is between -25°C and +70°C. It includes 1 x digital output (20-250Vac / 10-300Vdc; AC/DC 2-wire pow. MOSFET output; 400mA max.), with a sensing distance of 10mm. The sensor also features protection functions against output short-circuit and overload (Latched SCP), with a control circuit rated current of 300-400mA / 0.3-0.4 A. The thread size is M30, and it operates in a Normally Open (NO) mode.
Related documents BI10-GT30-ADZ30X2-B1131/S34/S1589 Specs
