B2N60H-Q20L60-2LU5-H1151 Turck Electronic Components

Name: B2N60H-Q20L60-2LU5-H1151
Brand: Turck

B2N60H-Q20L60-2LU5-H1151 on Powermatic Associates

Part#:B2N60H-Q20L60-2LU5-H1151

Manufacturer:Turck

Category:Electronic Components

Product Lifecycle:Discontinued

Product description

Inclinometer, Plastic, PC, Zero point calibration +/‐ 15°, Two analog outputs, M12 x 1 male connector

Product Details

Housing material
Plastic, PC
Output function
Analog output
Operating voltage
4.75…5.25 VDC
Construction size
60 x 30 x 20 mm
Number of measuring axes
2
Electrical connection
Connector, M12 × 1
Ambient temperature
-30…+70 °C
Measuring range
-60…60°
Protection class
IP68/IP69K
Measuring principle
Acceleration

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

B2N60H-Q20L60-2LU5-H1151 Related Documents

English-1630966210616.pdf

Similar products from: Turck Electronic Components

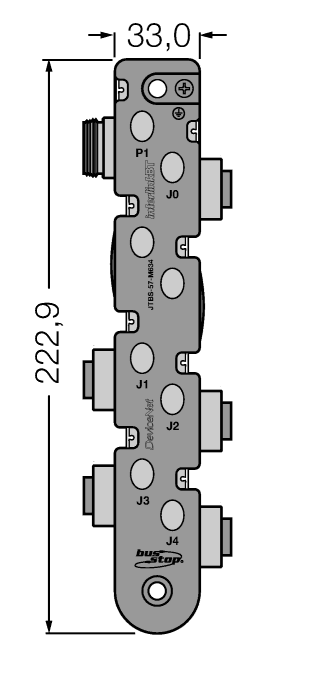

JTBS-57-M433

Turck

Turck JTBS-57-M433 is a DeviceNet passive junction box within the JTBS series, featuring a fully encapsulated black housing made from TPU with stainless steel receptacles. It is equipped with 5 x 5-pin 7/8" female connectors (J0-J4) for device connections and 1 x 5-pin 7/8" male connector (P1) for bus in and out, supporting a daisy-chain configuration. This junction box operates on a supply voltage of 300Vdc and is designed for surface mounting. It can operate within an ambient air temperature range of -30 to +80°C and offers a degree of protection of IP67, making it suitable for various industrial environments. The connection capacity includes 4 ports for device drops plus 1 for bus in and out.

1 in stock

Manufacturer warranty

B2N60H-Q20L60-2LU5-H1151 Turck

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare B2N60H-Q20L60-2LU5-H1151 with other Electronic Components products

Housing material

Output function

Operating voltage

Construction size

Number of measuring axes

Electrical connection

Ambient temperature

Measuring range

Protection class

Measuring principle

Selected product

Backordered

B2N60H-Q20L60-2LU5-H1151

Turck

Inclinometer, Plastic, PC, Zero point calibration +/‐ 15°, Two analog outputs, M12 x 1 male connecto...

Housing materialPlastic, PC

Output functionAnalog output

Operating voltage4.75…5.25 VDC

Construction size60 x 30 x 20 mm

Number of measuring axes2

Electrical connectionConnector, M12 × 1

Ambient temperature-30…+70 °C

Measuring range-60…60°

Protection classIP68/IP69K

Measuring principleAcceleration

1 in stock

JTBS-57-M433

Turck

Turck JTBS-57-M433 is a DeviceNet passive junction box within the JTBS series, featuring a fully enc...

Housing material-

Output function-

Operating voltage-

Construction size-

Number of measuring axes-

Electrical connection-

Ambient temperature-30…+80 °C

Measuring range-

Protection classIP67

Measuring principle-

108 in stock

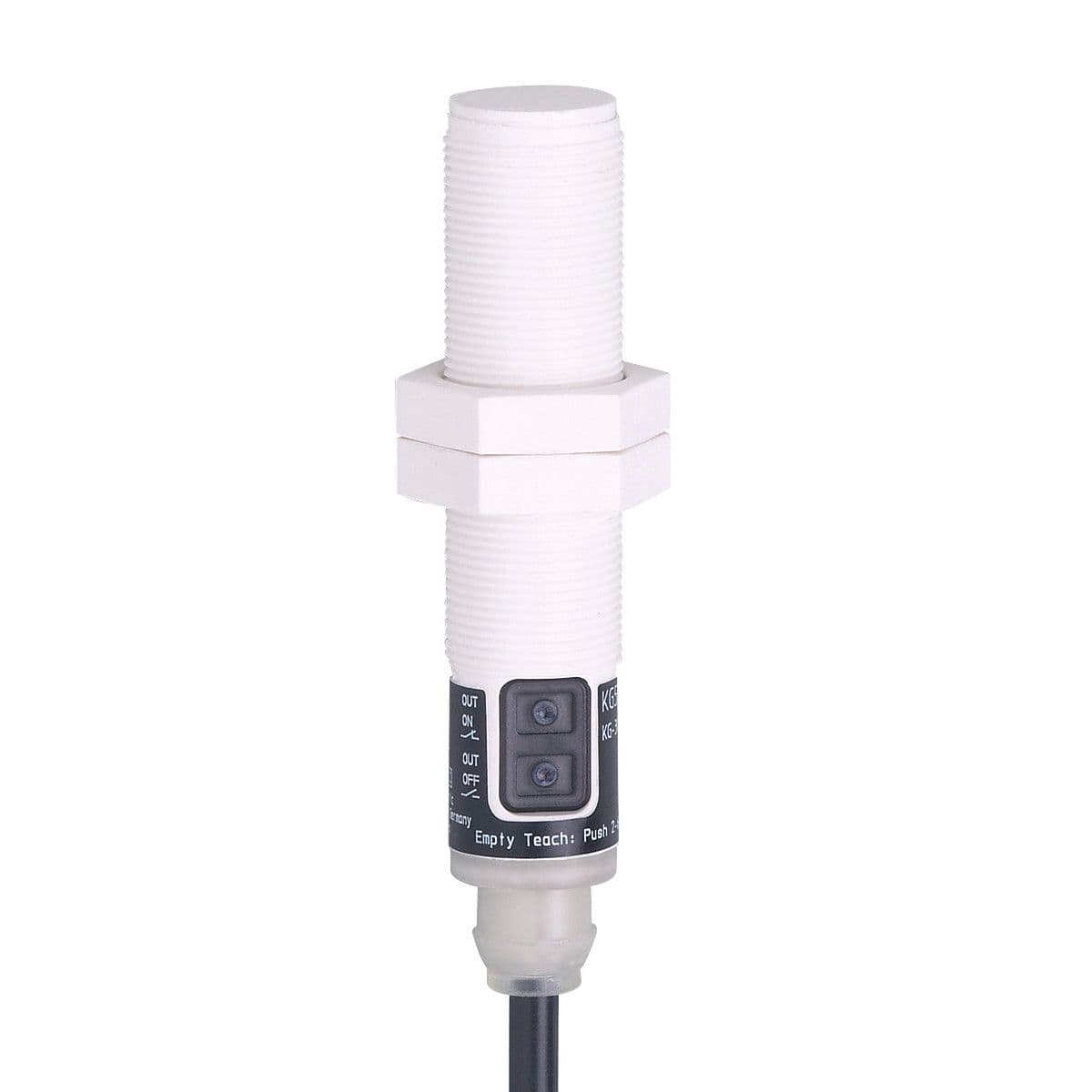

KG5067
