6MB12Z-4N2-CS12H Turck I/O Junction Boxes

Name: 6MB12Z-4N2-CS12H
Brand: Turck

Turck 6MB12Z-4N2-CS12H 6MB12Z-4N2-CS12H Actuator and Sensor Junction Box, 8 Port

Part#:6MB12Z-4N2-CS12H

Manufacturer:Turck

Alt. Part#:U2-19920

Product Lifecycle:Active

Get a quick Quote!

6MB12Z-4N2-CS12H Actuator and Sensor Junction Box, 8 Port

About the manufacturer: Turck is one of the manufacturers that offers I/O Junction Boxes that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the 6MB12Z-4N2-CS12H Turck price in the box on the right side or send a quick quote.

Product Details

Approvals
UL Listed, RoHS
Number of ports
6
Homerun Type
M23
Special Features
LEDs
Homerun Exit Location
Side exit
Voltage
30 V
Current Per Port
2 A
Housing material
Plastic
Application
Actuator and Sensor
Signals Per Port
1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

6MB12Z-4N2-CS12H Description

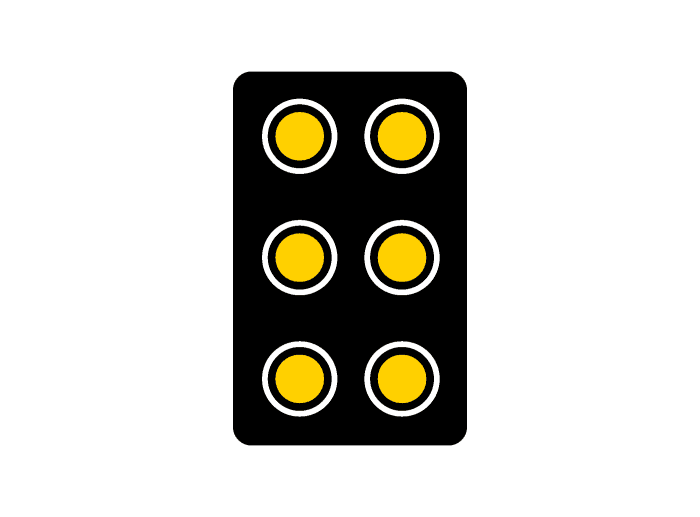

Turck 6MB12Z-4N2-CS12H is a passive junction box designed for automation applications, featuring a supply voltage range of 10-30Vdc with nominal values of 12Vdc and 24Vdc. It is equipped with six 4-pin M12 eurofast low profile female connectors and one 12-pin M23 multifast male homerun connector. The junction box supports a rated current of 2A per port and includes a side-exit homerun design. Each port has an LED indicator for NPN circuits and an additional power ON LED. The device operates within an ambient air temperature range of -40 to +85°C and offers a high degree of protection with IP68 and IP69K ratings. It is designed for surface mounting, features a black and yellow housing, and is constructed from a plastic body with nickel-plated brass receptacles. The connection capacity is 6-ports, and it belongs to the MB12 series (standard).
