XACD21A1241 Schneider Electric Industrial Automation Components

XACD21A1241 on Powermatic Associates
Schneider Electric

Part#:XACD21A1241

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric XACD21A1241 is a pendant station designed for controlling hoist motors, featuring a 2-directional button for raising and lowering operations. It belongs to the XAC sub-range and is constructed from polypropylene (PP), ensuring a degree of protection rated at IP65. This pendant station operates with a rated impulse voltage (Uimp) of 6 kV and supports a rated current of 3 A at 240Vac (AC-15), 1.2 A at 600Vac (AC-15), 0.27 A at 250Vdc (DC-13), and 0.1 A at 600Vdc (DC-13). It is designed for mechanical durability up to 3,000,000 operations at no load and features Normally Open (NO) auxiliary contacts for up/down speed 1 and 2, each with 2 NO contacts, and Normally Closed (NC) auxiliary contacts for up/down with 2 NC contacts. The rated insulation voltage (Ui) is 600 V. It is equipped with screw-clamp terminals and rated active power (kW) of 0.040 kW at 120Vdc, 0.048 kW at 48Vdc, and 0.065 kW at 24Vdc. The pendant station can operate within an ambient air temperature range for storage of -40 to +70 °C, with a minimum operating temperature of -25 °C and a maximum of 70 °C, supporting a 2-speed operating mode.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Similar products from: Schneider Electric Industrial Automation Components

M9A26946 on Powermatic Associates

M9A26946

Schneider Electric

Schneider Electric M9A26946 is a tripping coil designed for DIN rail mounting, falling under the sub-range of tripping coils. It functions as a shunt trip coil release with O/C contact (MX+OF), suitable for applications requiring precise control. The coil operates with a control voltage range of 110-130Vdc for DC applications and has a dual AC control voltage capability of 110/415Vac, accommodating a variety of electrical installations and configurations.

1 in stock
MD-CC404-000 on Powermatic Associates

MD-CC404-000

Schneider Electric

Comm Convrtr,USB_485/422,9pin, Sub-D,R

1 in stock
M9F53350 on Powermatic Associates

M9F53350

Schneider Electric

Schneider Electric M9F53350 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed with a 3 Pole configuration and a rated current of 50A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. This MCB offers a short circuit breaking rating of 10kA AIR at 120Vac, 240Vac, and 125Vdc. It supports a rated voltage (AC) for phase-to-phase connections up to 440 V and ensures all three poles are protected. The tripping curve for this device is classified as D.

1 in stock
XB7EV05MP on Powermatic Associates

XB7EV05MP

Schneider Electric

Schneider Electric XB7EV05MP is a monolithic pilot light designed for signaling applications, featuring an integral LED for illumination. This component, part of the XB7 sub-range, is constructed with a plastic body and has a round shape. It offers a rated impulse voltage (Uimp) of 6 kV and is protected to a degree of IP65, NEMA 4, and NEMA 12, indicating a high level of protection against dust, water, and other environmental factors. The pilot light operates on a network frequency of 50/60 Hz and requires a supply voltage of 230 V AC. It is designed with screw-clamp type terminals for secure connections. The light emitted by the LED is yellow. The physical dimensions of the XB7EV05MP include a diameter of 22 mm, a net height of 29 mm, a net depth of 54 mm, and a net width of 29 mm.

6 in stock
XB7EV04MP on Powermatic Associates

XB7EV04MP

Schneider Electric

Schneider Electric XB7EV04MP is a monolithic pilot light designed for signaling applications, featuring an integral LED for illumination. This component, part of the XB7 sub-range, is constructed with a plastic body and has a round shape. It offers a rated impulse voltage (Uimp) of 6 kV and is protected to a degree of IP65, NEMA 4, and NEMA 12, ensuring its suitability for various industrial environments. The pilot light operates on a network frequency of 50/60 Hz and requires a supply voltage of 230 V AC. It has a diameter of 22 mm, with net dimensions of 29 mm in height, 54 mm in depth, and 29 mm in width. The light emitted by the LED is red, and it features screw-clamp type terminals for connection.

94 in stock
M9XCTC15 on Powermatic Associates

M9XCTC15

Schneider Electric

Schneider Electric M9XCTC15 is a cover designed specifically for use with M9XC comb busbars. It belongs to the Comb busbars sub-range and serves as a Multi 9 - tooth cover. This product comes as a set of 5, tailored to enhance the application and integration of M9XC comb busbars within electrical installations.

10 in stock

Manufacturer warranty

XACD21A1241 Schneider Electric

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

MDI4MRQ34B2-EQ on Powermatic Associates

MDI4MRQ34B2-EQ

Novanta IMS

Novanta IMS MDI4MRQ34B2-EQ is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase AC stepper motor design. It is equipped with an external single-end 512-line optical encoder and a double (2) motor stack, Plus 2 version for expanded features. The connection is facilitated through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. This stepper motor operates on a 240Vac supply voltage and is designed for mounting with an 85x85mm flange. It can operate in ambient air temperatures ranging from 0 to +85°C and has a degree of protection rated at IP65. The moment of inertia is specified at 1.6kg.cm2, with a stall torque of 353N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

Relevant products

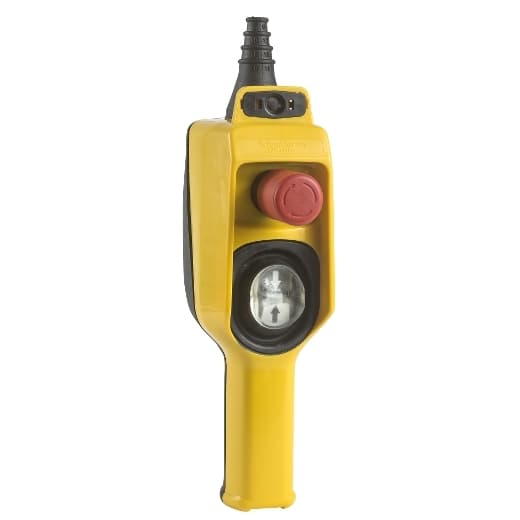

XACD22A0105 on Powermatic Associates

XACD22A0105

Verified stock: 0

Schneider Electric XACD22A0105 is a pendant station designed for hoist motor control, featuring a rocker lever with a 2-directional button for raising and lowering operations, and an emergency stop function. It belongs to the XAC sub-range and is constructed from polypropylene (PP), ensuring a degree of protection rated at IP65. This pendant station operates with a rated impulse voltage (Uimp) of 6 kV and supports rated currents of 3 A at 240Vac (AC-15), 1.2 A at 600Vac (AC-15), 0.27 A at 250Vdc (DC-13), and 0.1 A at 600Vdc (DC-13). It is designed for mechanical durability up to 3,000,000 operations at no load and features 2 Normally Open (NO) auxiliary contacts, along with 2 Normally Closed (NC) auxiliary contacts for the emergency stop and an additional 1 NC contact. The rated insulation voltage (Ui) is 500 V, and it is capable of operating within an ambient air temperature range for storage of -40 to +70 °C. The rated active power (kW) varies with voltage, offering 0.040 kW at 120Vdc, 0.048 kW at 48Vdc, and 0.065 kW at 24Vdc, with a minimum operating temperature of -25 °C and a maximum of 70 °C, designed for single-speed operation.

Schneider Electric

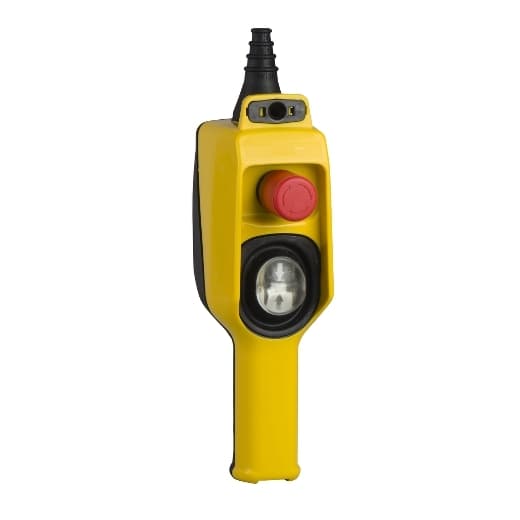

XACD22A0101 on Powermatic Associates

XACD22A0101

Verified stock: 0

Schneider Electric XACD22A0101 is a pendant station designed for hoist motor control, featuring a rocker lever with a 2-directional button for raising and lowering operations, and an emergency stop. It is part of the XAC sub-range and is constructed from polypropylene (PP), ensuring a degree of protection rated at IP65. This pendant station operates with a rated impulse voltage (Uimp) of 6 kV and supports rated currents of 3 A at 240Vac (AC-15), 1.2 A at 600Vac (AC-15), 0.27 A at 250Vdc (DC-13), and 0.1 A at 600Vdc (DC-13). It boasts mechanical durability of 3,000,000 operations at no load and includes 2 Normally Open (NO) auxiliary contacts and 1 Normally Closed (NC) auxiliary contact for the emergency stop function. The rated insulation voltage (Ui) is 500 V, and it can operate in ambient air temperatures ranging from -40 to +70 °C. The rated active power (kW) varies with voltage, being 0.040 kW at 120Vdc, 0.048 kW at 48Vdc, and 0.065 kW at 24Vdc, with a minimum operating temperature of -25 °C and a maximum of 70 °C, designed for single-speed operation.

Schneider Electric

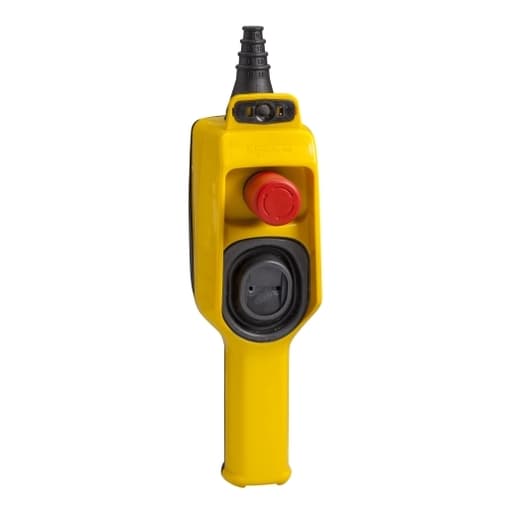

XACD21A0101 on Powermatic Associates
